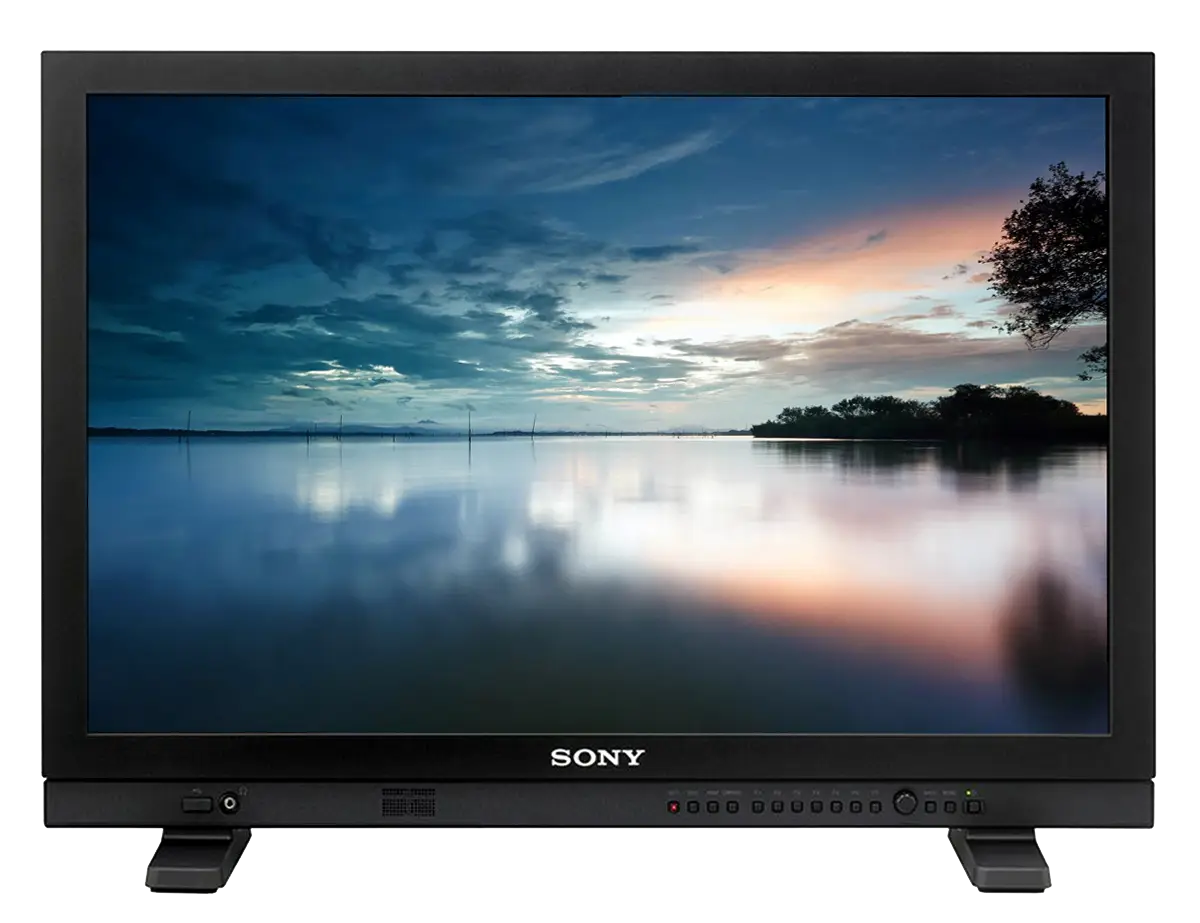

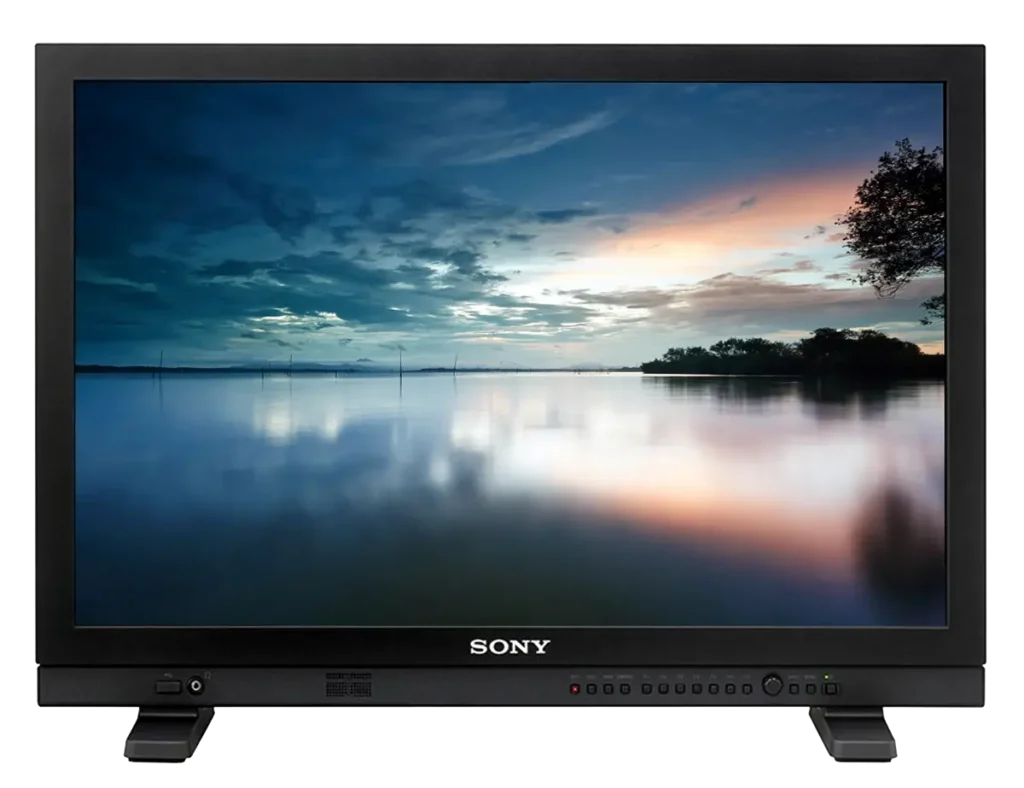

The LMD-A240 24-inch LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, Wall mount and yoke-mount holes, and an optional protection kit (BKM-PL17). In addition, the latest camera-linkage functions, such as camera and lens metadata display and a Picture and Picture function, provide the convenience of working efficiency both in the field and in the post process. LMD-A240 expands and enhances the monitor’s ability to support 4K production, shopping channels, field and graphics applications.
Sony continuously improves the LMD-A Series. The LMD-A240 now achieves HDR capability and is able to answer the highest demands of HDR production.

The LMD-A240 is a cost-effective yet highly capable entry solution for HD HDR and 4K HDR production. The monitor is one of the first HD picture monitors to support EOTF of S-Log3(Live HDR) which allows for seamless integration into Sony HDR Live production workflow. While also supporting ITU-R BT.2100(HLG), LMD-A240 will also easily integrate with Sony camcorders to enable Instant HDR workflow. SMPTE ST2084, S-Log3, S-Log2 and 2.4(HDR) are also supported for a variety of video productions.

The LMD-A240 fulfils the demand for an affordable HD monitor in a 4K system. The unit supports the ITU-R BT.2020 colour space and accepts one of Quad-link 2SI 3G-SDI signals. To fully utilise its wide colour gamut, the monitor offers DCI-P3 and S-GAMUT/S-GAMUT3/S-GAMUT3.cine settings, with proper EOTFs such as 2.6 gamma, S-Log3 and S-Log2.

The LMD-A220 21.5-inch LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, Wall mount and yoke-mount holes, and an optional protection kit (BKM-PL17). In addition, the latest camera-linkage functions, such as camera and lens metadata display and a Picture and Picture function, provide the convenience of working efficiency both in the field and in the post process. LMD-A220 expands and enhances the monitor’s ability to support 4K production, shopping channels, field and graphics applications. Sony continuously improves the LMD-A Series. The LMD-A220 now achieves HDR capability and is able to answer the highest demands of HDR production.

The LMD-A220 is a cost-effective yet highly capable entry solution for HD HDR and 4K HDR production. The monitor is one of the first HD picture monitors to support EOTF of S-Log3(Live HDR) which allows for seamless integration into Sony HDR Live production workflow. While also supporting ITU-R BT.2100(HLG), LMD-A220 will also easily integrate with Sony camcorders to enable Instant HDR workflow.

The LMD-A220 fulfils the demand for an affordable HD monitor in a 4K system. The unit supports the ITU-R BT.2020 colour space and accepts one of Quad-link 2SI 3G-SDI signals. To fully utilise its wide colour gamut, the monitor offers DCI-P3 and S-GAMUT/S-GAMUT3/S-GAMUT3.cine settings, with proper EOTFs such as 2.6 gamma, S-Log3 and S-Log2.

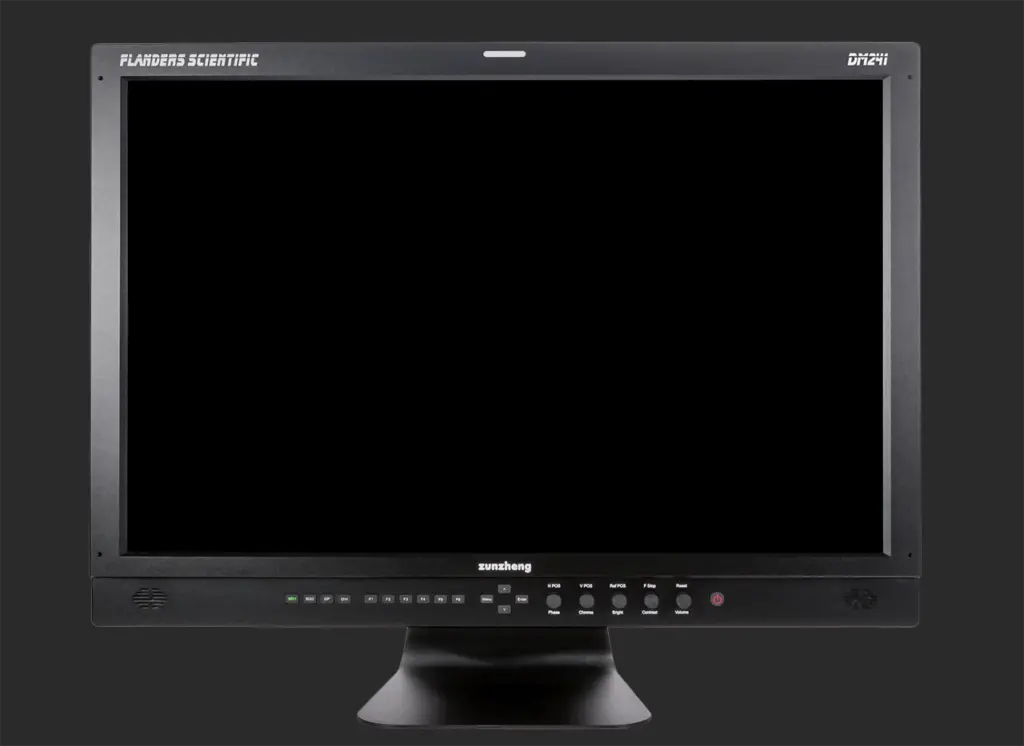

The DM241 is a durable, lightweight, efficient, and color critical professional broadcast monitor. Industry leading fast mode processing, a durable all metal chassis, and our most advanced feature set make the DM241 ideal for applications ranging from production to post.
FSI’s 3rd generation Color Fidelity and LUT Interpolation Engine (CFE3) houses a multitude of calibration and Look LUT memories for highly accurate color reproduction and effective look management. Instantly select from Rec709, EBU, SMPTE-C, DCI P3, Rec2020 Emulation*, Native Wide Gamut, and Custom User Generated color spaces. When activated this feature will highlight in focus areas with a trace color. The sensitivity of the focus assist feature can be adjusted using the H POS rotary knob. The weight (transparency) of the focus assist feature can be adjusted using the V POS Rotary knob. The color of the focus assist trace can be adjusted using the REF POS rotary knob. Select from White, Black, Red, Green, Yellow, Blue, Magenta, and Cyan. Additional gamma, peak luminance, and color temperature toggles further add to the versatility of DM Series Monitors. DM Series Monitors have Real Time Waveform and Vectorscope that update every frame. Scope position, background, size, and scale can be adjusted independently using the rotary knobs on the face of the monitor. Real Time scopes work in all processing modes including Zero Delay Fast Mode. CFE3 features industry leading tetrahedral LUT interpolation for greater accuracy and visual performance than hardware utilizing trilinear LUT interpolation.
FSI monitors come pre-calibrated from the factory and all DM series monitors support highly accurate volumetric Auto Calibration for recalibration over time. Simply plug a supported probe directly into the monitor and the advanced AutoCal routine will profile the monitor and use volumetric data to accurately target a very wide variety of available color management selections. 3D and 1D LUTs are calculated and saved on the fly as color management selections on the monitor are made, making for one simple and unified calibration process, all without requiring a computer.

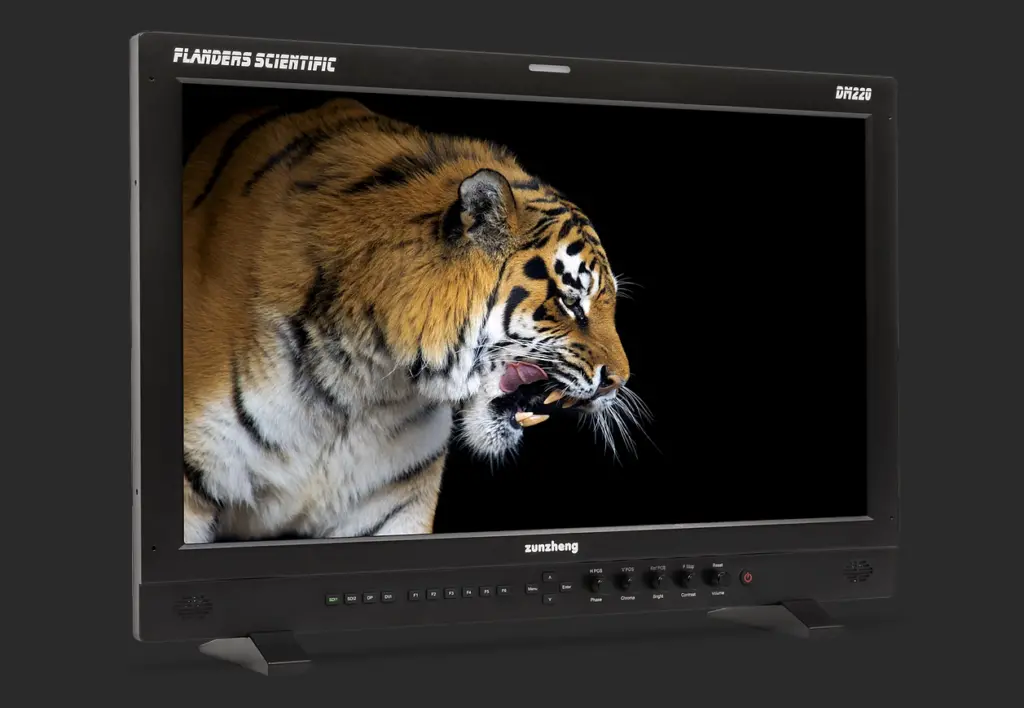

The Flanders 22” DM220 OLED is a high-contrast 22″ OLED monitor designed for use in color critical production and post-production applications. Industry leading fast mode processing, a durable all metal chassis, our most advanced feature set, and a compact and lightweight form-factor make The Flanders 22” DM220 OLED an exceptional reference grade monitoring solution for any environment. FSI’s 3rd generation Color Fidelity and LUT Interpolation Engine (CFE3) houses a multitude of calibration and Look LUT memories for highly accurate color reproduction and effective look management. Instantly select from Rec709, EBU, SMPTE-C, DCI P3, Rec2020 Emulation*, Native Wide Gamut, and Custom User Generated color spaces.
The Flanders 22” DM220 OLED monitor has Real-time LUT updates using compatible software without the need for additional standalone LUT management hardware. All you need is a camera, computer, and a monitor. Mirror what you see on screen to downstream equipment. Apply LUTs on DM Series monitors and other downstream monitors simultaneously.
Second screen outputs work in addition to standard loop through outputs allowing you to simultaneously output clean and manipulated images. Zero Delay Fast Mode makes DM Series monitors an ideal choice for applications requiring instantaneous video processing speed in on-set, studio, and post environments. DM Series monitors are capable of multiple Image Flip modes. You can quickly toggle through available modes including: Vertical, Horizontal, and Vertical + Horizontal.
Image Flip works on all inputs and is mirrored downstream via second screen output. DM Series Monitors have Real Time Waveform and Vectorscope that update every frame. Scope position, background, size, and scale can be adjusted independently using the rotary knobs on the face of the monitor. Real Time scopes work in all processing modes including Zero Delay Fast Mode.

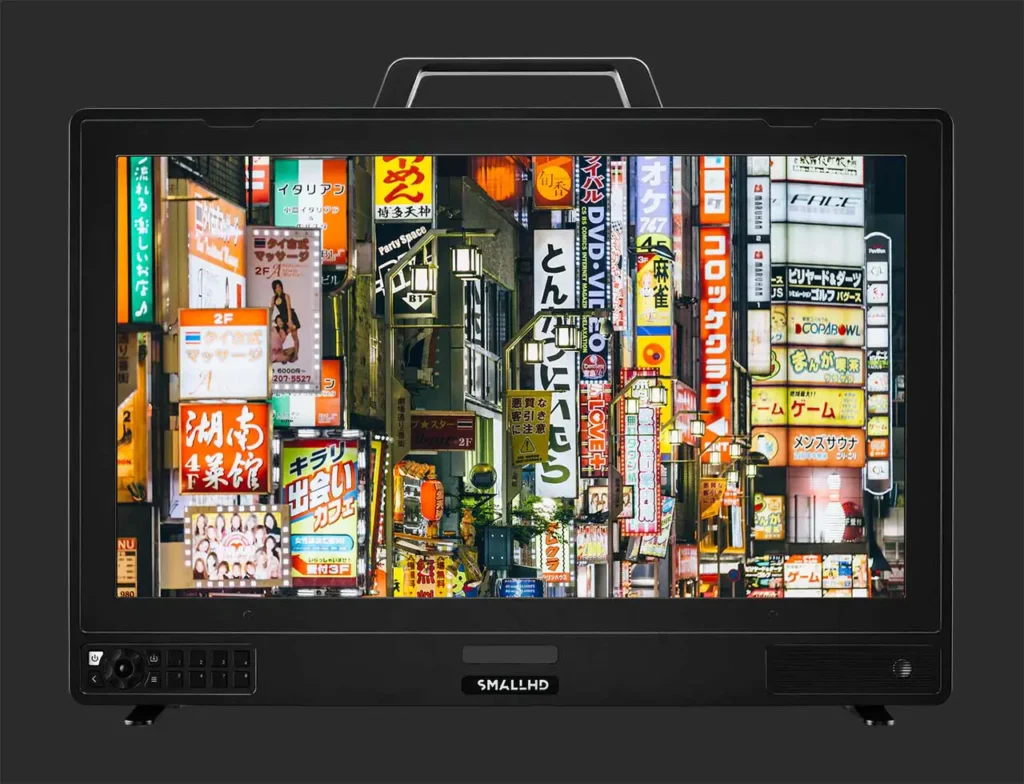

Add a professional UHD 4K monitor to your studio with the Cine 24″ 4K High Bright Pro Monitor from SmallHD. Featuring the updated SmallHD OS4.1, the monitor provides a crisp image with 10-bit DCI-P3 color intelligence, 1350 cd/m² brightness, and a 1000:1 contrast ratio. The monitor features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1 that features a fully redesigned UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons. Additional functions with updates of OS4.1 will include dual and quad view and 4K waveforms and scopes with regions of interest. The monitor can be mounted using the 100 x 100mm VESA pattern on the back or by thirty-six 1/4″-20 threads around the top and sides of the monitor. You can power the monitor using a 3-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. You can also power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output. Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio. The monitor includes numerous accessories such as an acrylic screen protector, a 3′ long HDMI cable, two 1/4″-20 cheese-style accessory mounting sticks, two 1/4″-20 and 3/8″-16 cheese-style accessory mounting sticks, monitor feet, a monitor handle, a 3-pin XLR power supply, an 8GB SD card, and a microfiber cleaning cloth.

• 24″ UHD 4K monitor
• 1000:1 contrast ratio
• 1350 cd/m² brightness
• Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs
• One HDMI 2.0 input and one HDMI 2.0 output
• SD card slot for 3D LUTs
• One RJ45 Ethernet port
• One RJ45 GPI port
• 100 x 100mm VESA mounting on the back
• Thirty-six 1/4″-20 mounting threads on top and sides
• Smartrail mounting options
• 1/4″-20 and 3/8″-16 cheese-style mounting sticks included

The Sony 25″ PVM A250 25-inch, Full HD monitor achieves the industry-leading lightweight and shallow body, with a approximately 40 per cent reduction compared to the previous PVM-2541A model. It is easy to carry, even by one person. The PVM-A250 incorporates the TRIMASTER EL™ OLED panel and offers the industry’s widest viewing angles of any professional flat-panel monitor on the market, making group monitoring easy. The stylish new design also includes a, robust, optional protection panel and corner bumpers*. The latest camera-linkage functions, such as camera and lens metadata display and a Picture and Picture function, provide the convenience of working efficiency both in the field and in the post process. Version 2.0 of the Sony 25″ PVM A250 expands and enhances the monitor’s ability to support 4K production, shopping channels, field and graphics applications.

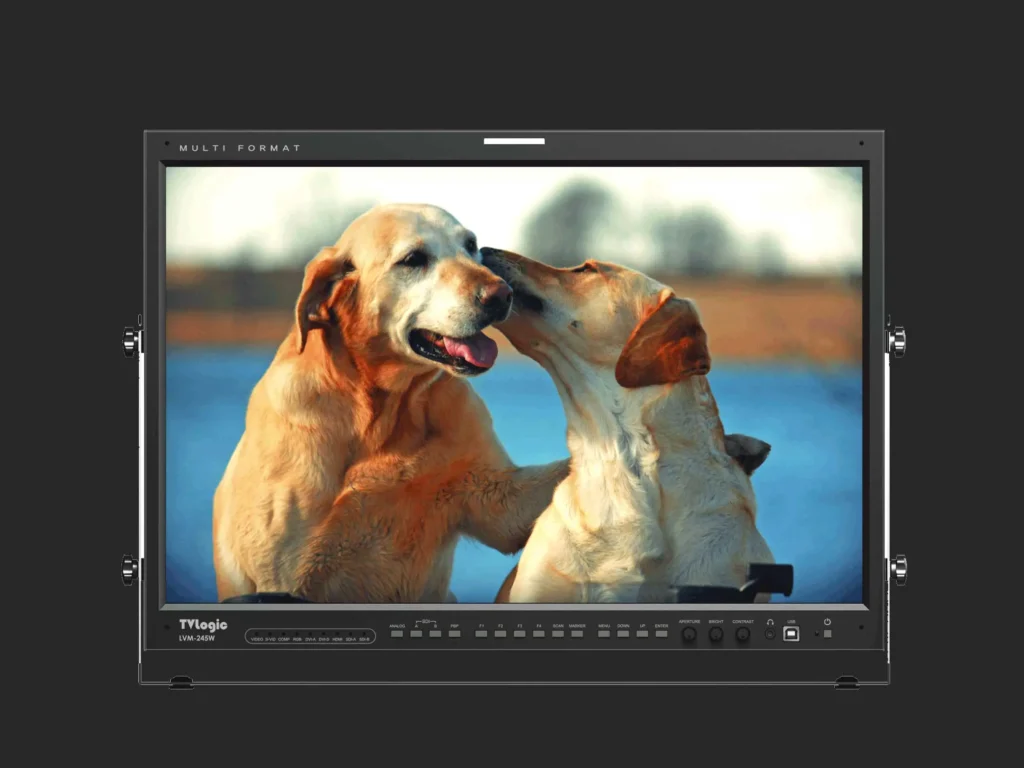

TV-Logic 24″ LVM-245W is a broadcast monitor with high picture quality and professional features. Utilizing the same state-of-heart TFT-LCD panel of XVM-245W, this monitor provides the smooth color ramp with 10bit color depth, high color purity and wide viewing angel. It supports various video interface of SD/HD/3G-SDI, DVI, HDMI, Component Video, S-Video and CVBS. Also provides professional features such as Waveform & Vectorscope, Markers, Timecode, Closed Captions and color calibration.

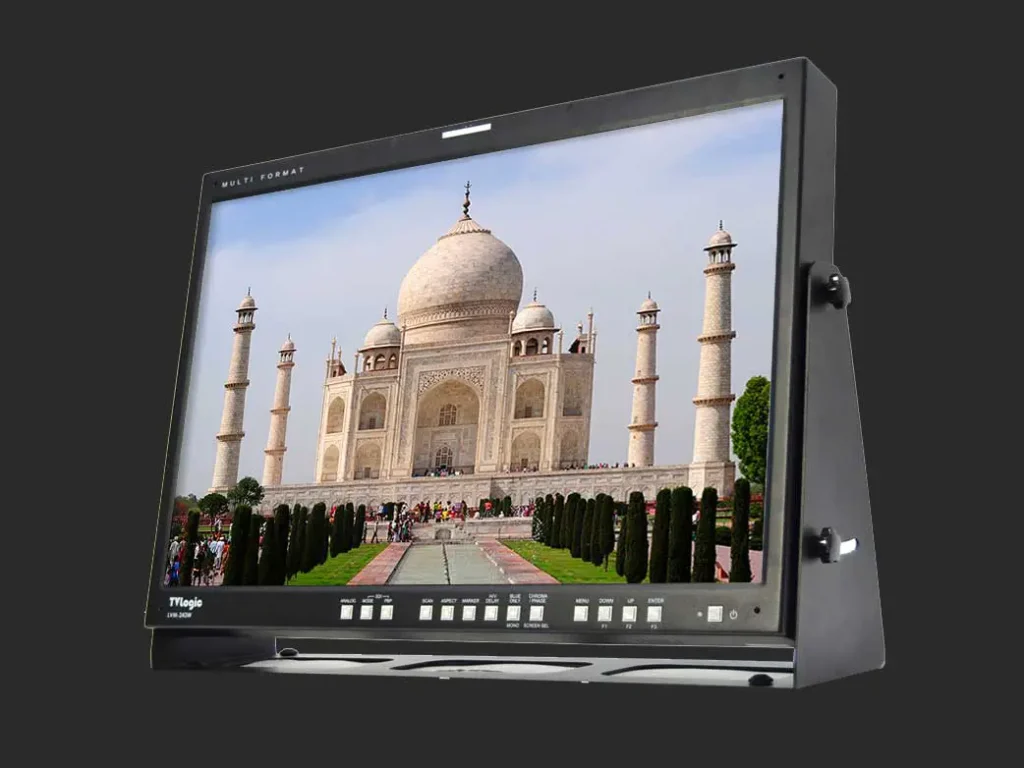

The TV-Logic 24″ LVM-243W-3G is a 24” native 1920 x 1080 display with Multi-Format inputs including 3G/Dual-Link HD-SDI, CC decoding, built-in Waveform and Vector Scope, Audio Demuxing, On-screen Audio Level Meter and various Scan modes.

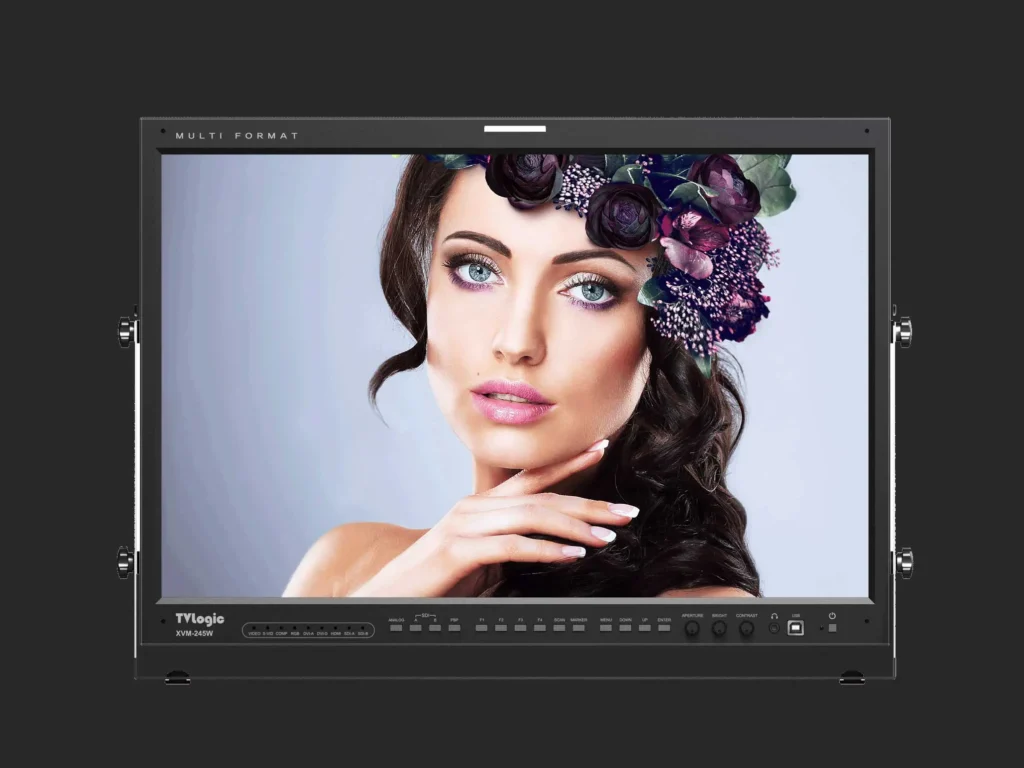

The TV-Logic 24″ XVM-245W utilizes a High-Purity RGB Matrix LED backlight array to reproduce the most accurate color possible on an LCD. The XVM-245W meets most of EBU Grade 1 specifications for color critical monitors while retaining all of the broadcast features found in the popular LVM Series. The TV-Logic 24″ XVM-245W features an integrated 3D LUT and supports import and export of popular color grading application LUT formats.
