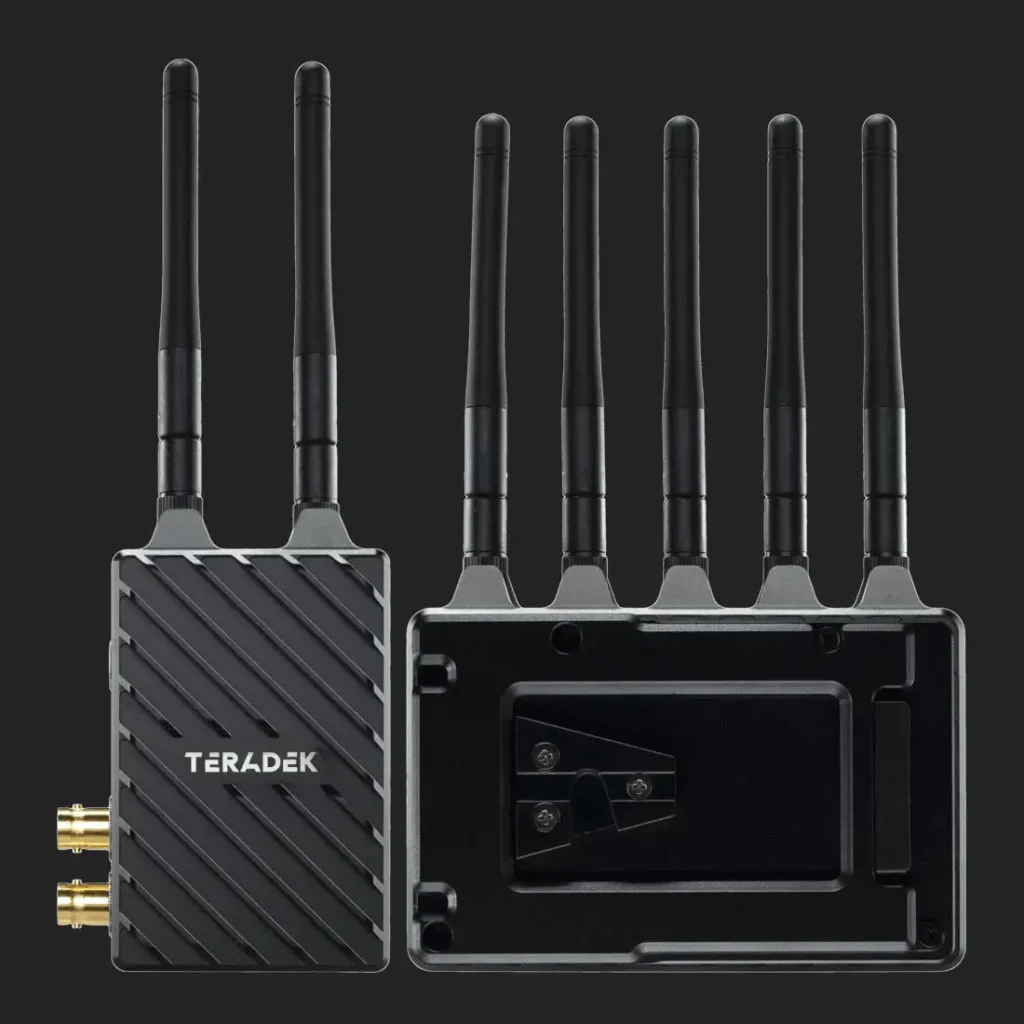

Teradek’s most powerful compact system yet. Featherlight body weight with heavyweight strength, so you can fly at the speed of cinema. Entirely HDR. Zero delay. All Bolt 4K LT Series of devices are interoperable, so any TX/RX duo may be paired together. Ranges can be mix-and-matched, so devices will extend image signal to their respective model distance. With the free Teradek Bolt iOS/Android application, wirelessly pair any TX and RX devices, manually designate specific 5GHz channels, apply individual RX LUT output settings, and monitor environmental signal interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools. Wireless signal protection is guaranteed with AES-256 encryption and RSA 1024 key pairing. Combined, these two technologies ensure that your wireless feed cannot be decrypted, and outside receivers may not be connected to your system without explicit authorization. Bolt 4K LT devices operate over 13x 40MHz frequencies to avoid signal interference. For particularly noisy environments, Fixed Frequency Mode locks paired TX/RX devices into a single, designated 5GHz frequency, resulting in improved communication and instantaneous reconnection times.

• Includes: 1 TX & 1 RX
• Video: Up to 4Kp30 / 1080p60
• Range: 750 ft. / 1500 ft.
• Inputs: HDMI 2.0, 3G-SDI
• Outputs: HDMI 2.0, 3G-SDI
• Multicast: Up to 6 RX
• Compatibility: All Bolt 4K Series TX/RX Devices

The Bolt Pro 3000 Transmit uncompressed 1080p video wirelessly over 3000 feet line-of-sight with the Teradek Bolt Pro 3000 Wireless Video Transmitter/Receiver Set. Included in this set are a Teradek Bolt Pro 3000 transmitter and receiver, both equipped with 3G-SDI input/output.

The transmitter can pair with and multicast to up to four receivers (additional receivers not included). When transmitting uncompressed video, latencies of less than one millisecond can be achieved if no other video processing is necessary.

The Bolt Pro is a zero delay wireless video transmission system designed for the most demanding cinema, broadcast, and UAV applications.
Teradek Bolt is a zero delay wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000ft over the unlicensed 5GHz band. All Bolt models are multicast capable up to 4 receivers, support timecode and metadata pass through, and include the USB 3.0 GRAB Engine.

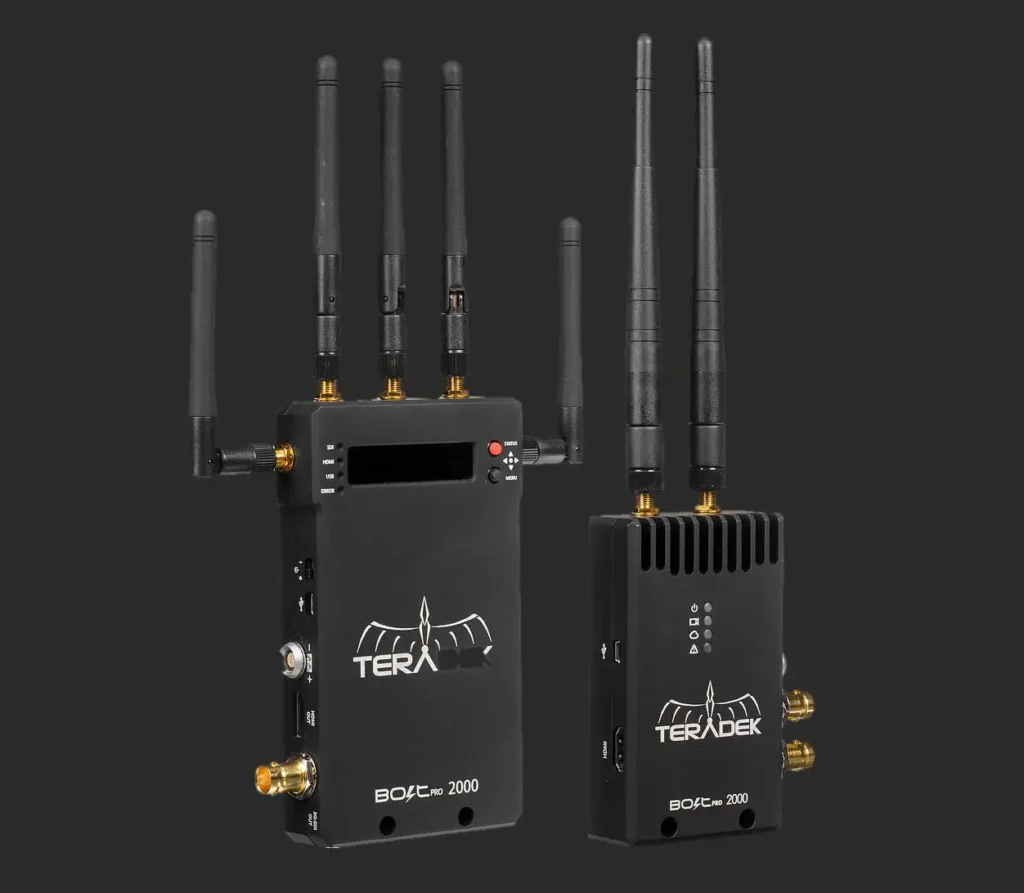

The Bolt Pro 2000 increases the line of sight range all the way up to 2000ft and also comes in HDMI, 3G-SDI and dual I/O models. The 2000 model includes every feature found on the Bolt Pro 600 and can be outfitted with high gain antennas for increased range and resiliency.

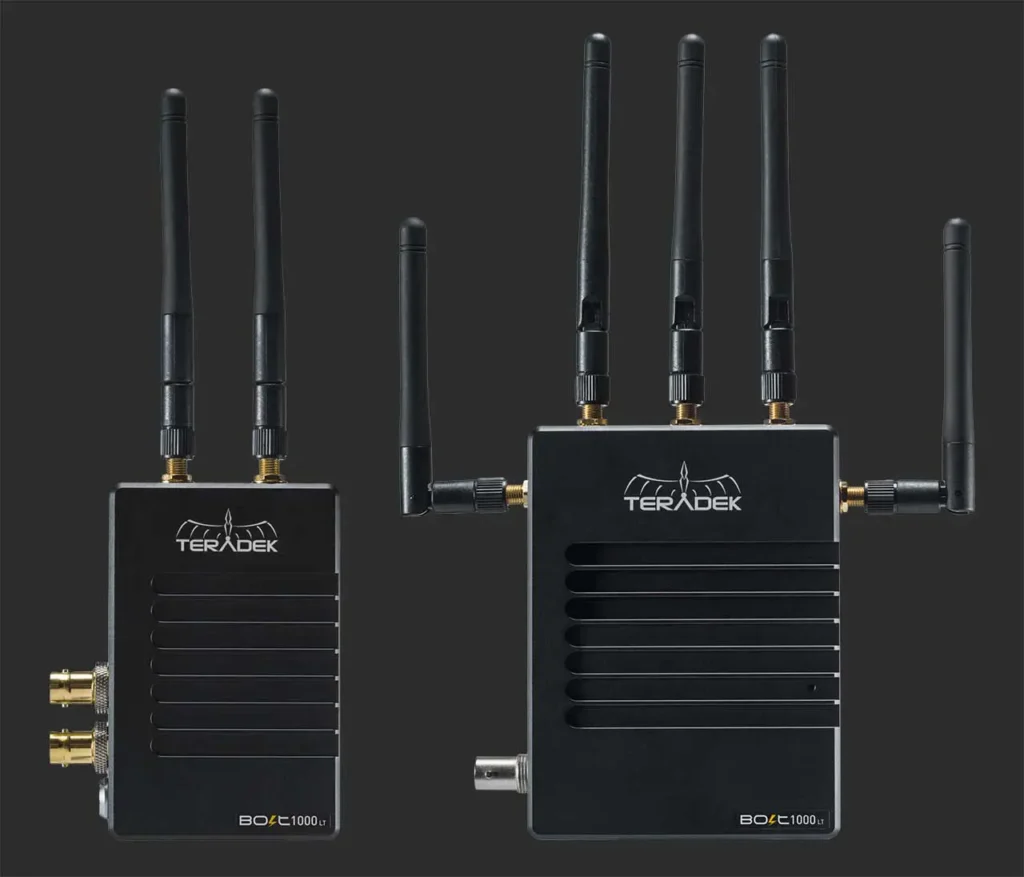

The Transmit uncompressed 1080p video wirelessly over 1000 feet line-of-sight with the Teradek Bolt Pro 1000 Wireless Video Transmitter/Receiver Set.

Included in this set are a Teradek Bolt Pro 1000 transmitter and receiver, both equipped with 3G-SDI input/output.

The transmitter can pair with and multicast to up to four receivers (additional receivers not included).

When transmitting uncompressed video, latencies of less than one millisecond can be achieved if no other video processing is necessary.

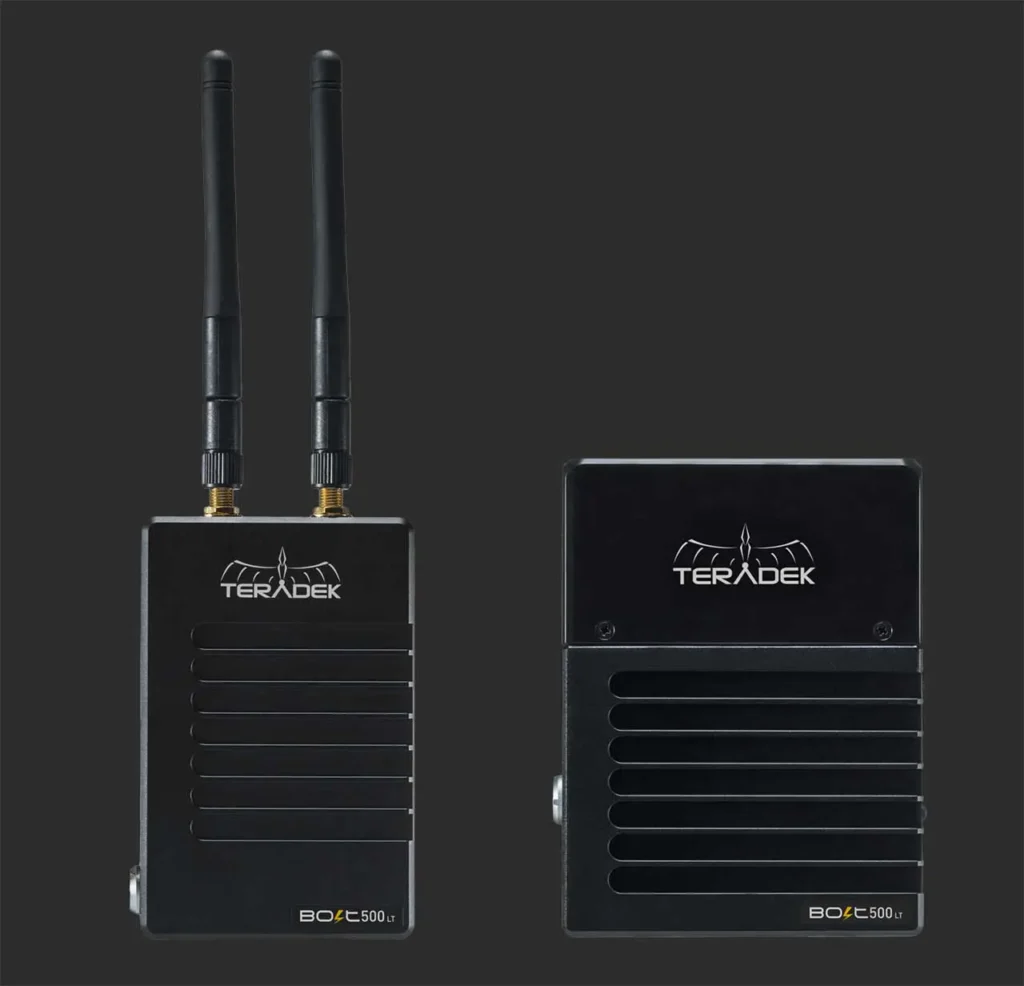

The Bolt Pro 500 3G-SDI/HDMI Video Transmitter from Teradek transmits visually lossless video up to 500′ with no delay. Within the unlicensed 5 GHz channel range, you can use multiple Bolts in one location without any interference. Thanks to built-in cross-conversion supported by every Bolt model, the transmitter supports real-time standards and cross-conversion from receiver to transmitter, allowing you to automatically convert resolution, frame rate, and inputs/outputs (HDMI / 3G-SDI) without any additional hardware. The built-in HDMI to SDI converter allows you to connect both your on-camera monitor and video source via the same device, thereby making Bolt Pro 500 suitable for use with MoVI and other separately available gimbals.

The Bolt Pro 300 is the latest update to the popular Bolt Pro line, offering you a choice of HDMI, 3G-SDI. The 300 model maintains its internal antennas and offers a completely redesigned fan-less receiver that includes a USB 3.0 output, which allows you to ingest video directly into your computer or DIT cart with ease.

Transmit uncompressed 1080p video wirelessly over 300 feet with the Teradek 3G-SDI Wireless Transmitter-Receiver Set. Included in this set are a Tansmitter and Receiver both equipped with 3G-SDI ports. The units in this kit are compact and feature internal antennas so they can fit on your camera rig and in your video village, DIT cart, or director’s monitor rig.

The Teradek Bolt Pro 600 Wireless HD-SDI Video Transmitter/Receiver Set uses a new RF design that allows a transmission range of up to 600 ft line of sight, and it includes RP-SMA connections for external antennas on the transmitter. It supports wireless HD video with zero delay receivers. The transmitter accepts HD-SDI input, and the receiver outputs HD-SDI as well as USB 3.0 video and audio. The receiver features an OLED display and joysticks for easy setup and pairing.
