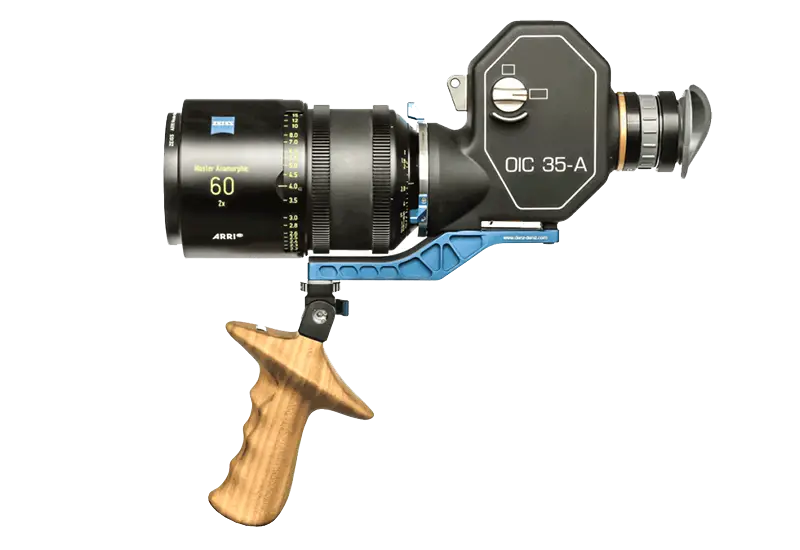

The DENZ Director’s Viewfinder OIC-35A (Optical Image Control) is an indispensable tool for any director, cameraman or gaffer.

DENZ OIC35-A
Director‘s viewfinder for anamorphic & spherical lenses.

Protection against twisting thanks to the special DENZ system ¼“ threaded hole on the bottom of the handgrip for Monopod mounting

Interchangeable anamorphic / shperical settings
Available with PL or PV hard mount
Flexible eyepiece with +/- 5 dpt diopter adjustment

Ergonomic universal handgrip, made of cherrywood, with DENZ Soft-Touch coating and quick-adjustment locking rosettes for ideal adjustment of the handle with anti-twist using DENZ keying system
Special extension bracket made of  AW7075 aluminum for optimal balance with larger lenses; three mounting points for handgrip with 1/4″ thread on bottom of handgrip for monopod use
DENZ ground glass: 1:1.78  ♦  1:2.35 with 1:1.85  ♦ SCOPE 1:2.39 with 1:1.33  ♦  with center mark/cross ♦ blank

The DENZ Director’s Viewfinder OIC-35A (Optical Image Control) is an indispensable tool for any director, cameraman or gaffer.

A native image is always closer to reality than a digital image. The DENZ OIC FF is the first choice on set or location, where an optical viewfinder for full frame is concerned. The OIC FF is switchable from spherical to anamorphic with de-squeeze factors of 1.3, 1.5, 1.8 and 2.0 available and others upon request.

Coverage of Full Frame
Swappable mount program includes PL, LPL and SP70
Eyepiece with +/- 4 dpt adjustment
New DENZ ground glasses – robust and acetone-proof
Ergonomic universal handgrip, made of cherrywood, with DENZ Soft-Touch coating and quick-adjustment locking rosettes
Special bracket made of AW7075 aluminum for optimal balance with larger lenses; three mounting points for handgrip
1/4″-20 thread on bottom of handgrip for monopod use

The DENZ Director’s Viewfinder OIC-35 (Optical Image Control) is an indispensable tool for any director, cameraman or gaffer.

OIC-35 covers Super35 format and is intended for use with spherical lenses.

Available with PL- or PV-Mount
Eye piece with a linear extension (diopter -4 / +3.5) for right and left viewing
Ergonomic universal handgrip (made from cherry wood) with DENZ soft-touch coating + integrated pivot-hinge with Hirth gearing and clamp; clamp for an ideal adjustment of the handle
Protection against twisting thanks to the special DENZ system¼“ threaded hole on the bottom of the handgrip for Monopod mounting

The Arri Director’s Viewfinder (PL Mount) is a compact handheld unit for viewing through the lens without the need for a camera. Ground Glasses are the standard ARRIFLEX 435 frame with hundreds of 35mm formats available. Ground Glass for RED shooters with both the 4K 16:9 and 2.1 active sensor area frame lines available. Custom formats using the ARRI Ground Glass On Demand Composer are also possible.

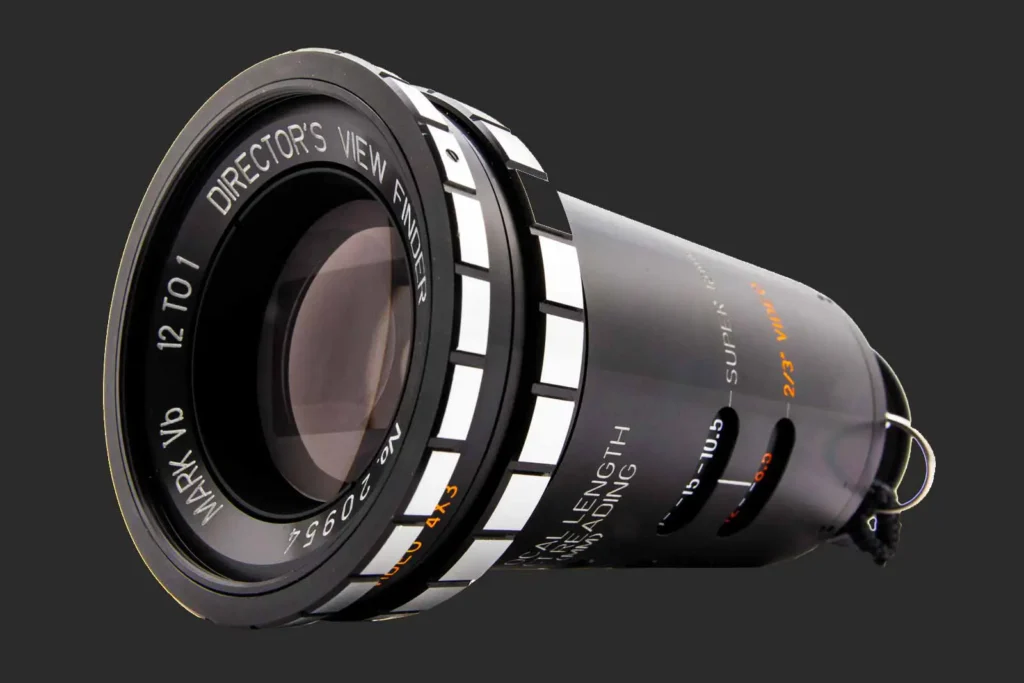

The ACADEMY AWARD® Winning and Emmy® Winning Alan Gordon Mark V Director’s Viewfinder accurately defines choice of lenses, angles and coverage in a wide variety of formats for both film and video. It continues to be the choice of renowned directors and cinematographers worldwide.
