Zoom Fujinon
Category name

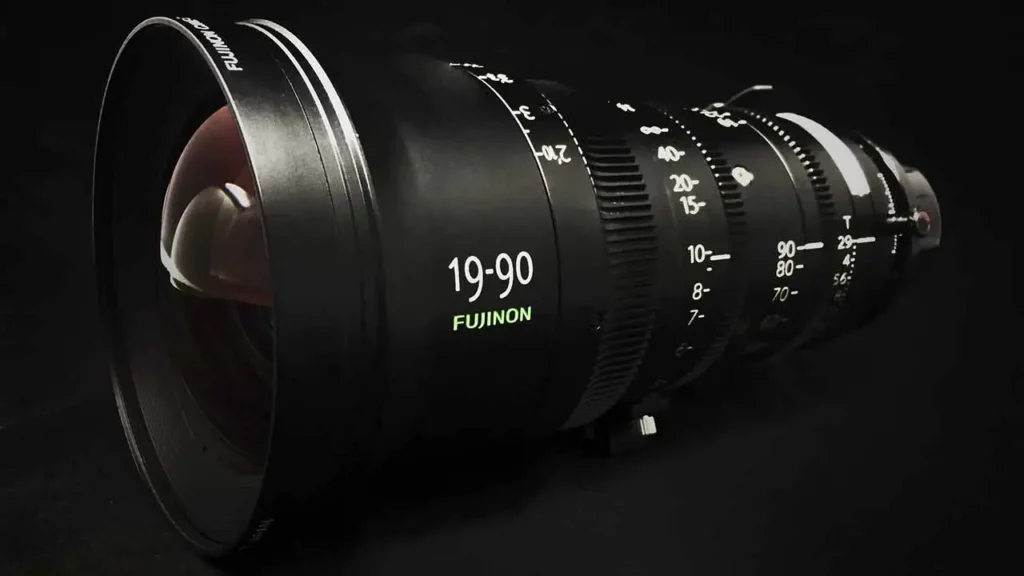

Zoom Fujiinon PL 19-90

Fujinon 19-90 | Rec Roma - Spherical Zoom Lenses

The Zoom Fujiinon PL 19-90 Cabrio (ZK4.7×19) features an exclusive detachable servo drive unit, making it suitable for use as a standard PL lens or as an ENG-Style lens. The Zoom Fujiinon PL 19-90 also features flange focal distance adjustment, macro function, and is LDS (Lens Data System) and /i metadata compatible. With a 19-90mm focal range and weight of only 2.85kg including servo motors, this lens has the longest focal range available in a light weight zoom.

Videographers used to shooting video in a typical ENG-style will be very comfortable with the servo. Cinematographers will also be right at home with this lens. With the detachable drive removed, the lens is set to accept industry standard cine motors and matte boxes. Plus, the lens has all the lens data output that appeals to a Cine-style shooter. LDS and /i metadata compatibility is very useful when you want to record the position information of zoom, iris and focus for computer animation and other uses.
The digital servo on the 19-90mm Cabrio has 16-bit encoding, so operators can be assured that all lens data output is extremely accurate.
The 19-90mm covers 31.5mm sensor size on a digital cinema style camera. While sensors on standard broadcast cameras are all the same size, sensors on digital cine cameras vary greatly. This new zoom ensures the image captured will cover large sensors for optimal, full-frame resolution. A nine-blade iris part of the design as well, creating the most natural-looking imagery possible.

Barrel markings are luminous for visibility in dark shooting situations. Distances are listed in feet or meters and can be changed in the field.

The 19-90mm can be controlled using cinema industry standard wireless controllers, as well as existing Fujinon wired and wireless units. Whether you are from a film background or a video one, the Premier PL 19-90 offers uncompromising quality and unprecedented flexibility.

www.fujifilm.eu

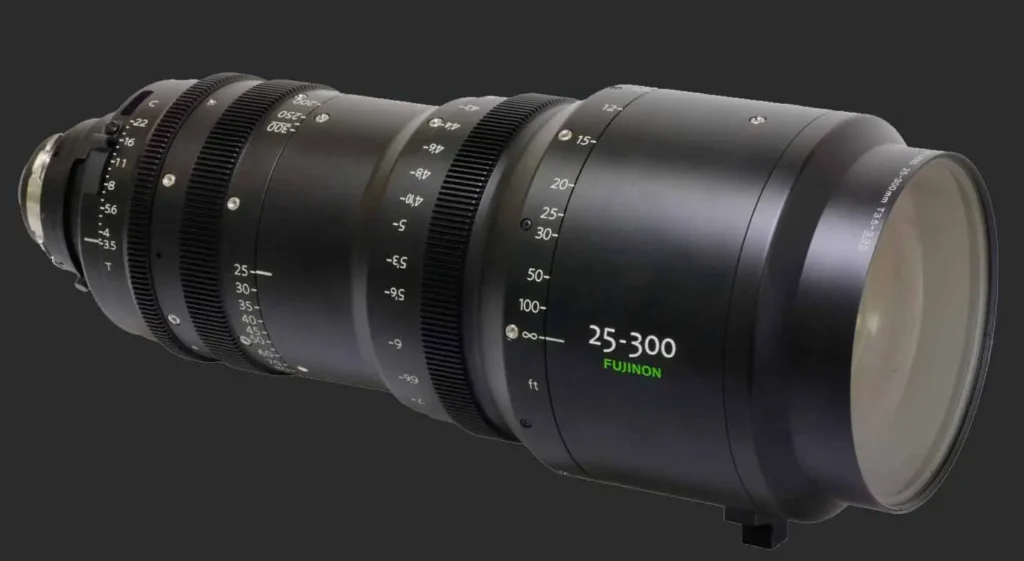

Zoom Fujinon PL 25-300

Fujinon 25-300 | Rec Roma - Spherical Zoom Lenses

The Zoom Fujiinon PL 25-300 12x PL mount cine lens, starting at 25mm and reaching to 300mm, will give you the versatility to cover a wide variety of shooting situations. The PL Zoom Fujiinon PL 25-300 with its generous focal range, makes it ideal for shooting documentaries, nature and wildlife, and car commercials, as well as the closer shots that can only be made with a wider angle lens.
The PL 25-300 covers 31.5mm sensor size on a digital cinema style camera. While sensors on standard broadcast cameras are all the same size, sensors on digital cine cameras vary greatly. This new zoom ensures the image captured will cover large sensors for optimal, full-frame resolution. A nine-blade iris part of the design as well, creating the most natural-looking imagery possible.
The detachable digital servo will make a great accessory for this extra long Cabrio lens. Joining the Cabrio family, the PL 25-300 will offer all the features of the Cabrio line; Flange focal adjust, LDS and i/ Technology metadata compliant*, smooth focus action, and of course, spectacular 4K performance!

  • Camera Format: PL Mount
  • Focal length: 25 – 300 mm
  • Zoom range: 12 ×
  • Maximum Photometric Aperture T-No.: 1 : 3.5 (25-273mm) – 1 : 3.85 (300mm)
  • Iris Blades: 9
  • Focus Rotation (degrees): 280
  • Zoom Rotation (degrees): 120
  • M.O.D. from image plane: 1.2 m / 3′ 11″
  • Object dimensions at M.O.D. 16 : 9 Aspect ratio: 25 mm 937 × 527 mm / 300 mm 77 × 43 mm
  • Angular field of view 16 : 9 Aspect ratio: 25 mm 57°32′ × 34°19′ / 300 mm 5°14′ × 2°57′
  • Macro: Available as standard
  • Diameter × Length: 136 × 401 mm
  • Weight: 8.9 kg
www.fujifilmusa.com

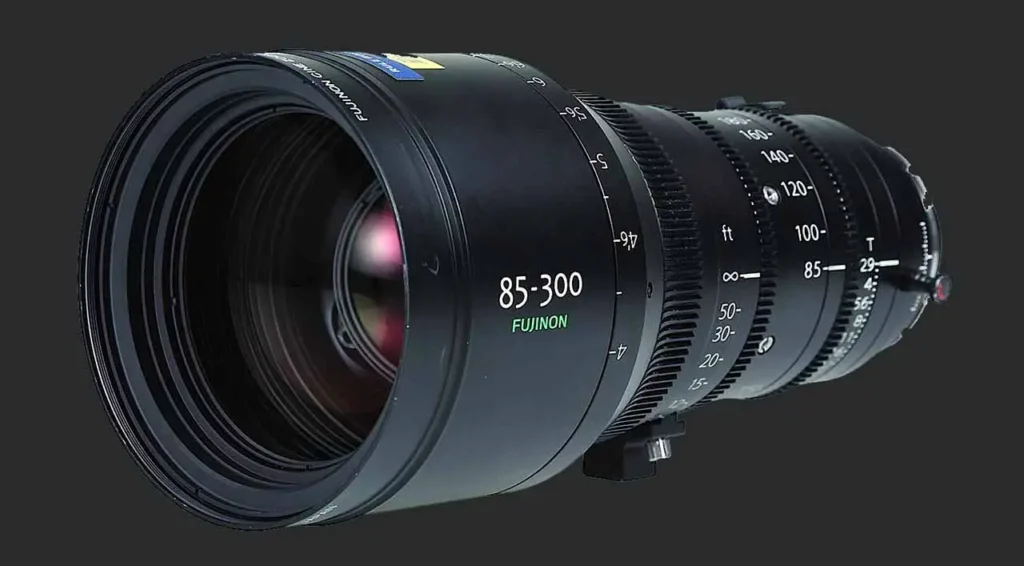

Zoom Fujinon PL 85-300

Fujinon 85-300 | Rec Roma - Spherical Zoom Lenses

The PL Zoom Fujiinon PL 85-300 Cabrio (ZK3.5×85-SA) features an exclusive detachable servo drive unit, making it suitable for use as a standard PL lens or as an ENG-Style lens. The Zoom Fujiinon PL 85-300 also features flange focal distance adjustment, macro function, and is LDS (Lens Data System) and /i metadata compatible. Despite the impressive 85-300mm focal range the weight its weight is only 3.0kg including servo motors.

  • Angular field of view 16:9: 85 mm 18°21′ × 10°23′ 300 mm 5°14′ × 2°57′
  • Filter thread: M114
  • Focal lenght: 85-300mm
  • Iris blades: 9
  • M.O.D (from Image plane): 1.20 m
  • Mass (without lens hood): 3.0kg w/drive unit 2.5kg w/o drive unit
  • Maximum photometric aperture T-No: 1 : 2.9 (85-220mm) 1 : 4.0 (300mm)
  • Object Dimensions at M.O.D: 85 mm 274 – 154 mm 300 mm 79 – 44 mm
  • Size (diameter x length): 114 × 249 mm
  • Zoom rotation: 3.5 X
www.fujifilm.eu
