Focus Systems
Category name

Arri Hi-5

Arri Hi5 | Rec Rental - Focus Systems

Compatible with ALEXA Mini LF, ALEXA LF, ALEXA Mini, ALEXA SXT W, ALEXA 65, cforce mini RF, UMC-4 and RIA-1/RF-EMIP.

Hi-5 is the most sophisticated hand unit on the market, providing reliable wireless control of cameras and lenses. Weatherproof and solidly built, it features an exceptional radio link range and unique, swappable radio modules for different territories and shooting challenges.
The Hi-5 Hand Unit Basic Set from ARRI offers advanced wireless multi-axis camera and lens control via a large knob, instant reconnection, a high-contrast touchscreen LCD, powerful signal, and a modular, highly customizable design. Included with the set are the Hi-5 body, a Bluetooth dongle, a Smart focus ring, the RF-EMIP Radio Module 2400 MHz DSSS, two LBP-3500 battery packs, an LBP battery charger, a hand strap, a neck strap, and a screen protector.

Features include hot-swapping battery support, optional radio modules for different regions, user-defined function buttons, pre-marked Smart focus rings, an integrated NATO rail, and a waterproof design to use in all-weather environments. Using the included Bluetooth dongle, the Hi-5 can be configured and updated using the ECS Sync app for iOS. It can also be used to update LBUS devices and configure the Hi-5. The included 2400 MHz radio module allows you to connect wirelessly with the RIA-1 radio interface adapter. It features 14 channels and is also backward compatible with white-coded radio EMIP modules.


The 4-pin LBUS ports allow you to hardwire the unit to your ARRI camera to control your lens functions, and you can purchase optional licenses to control cameras such as RED, Panavision, and Sony. The Hi-5 is also compatible with the cforce mini RF using the separately available RF-EMIP radio module. Other features include customizable focus knob operation, Focusbug Cine RT support, and compatibility with one included or various optional pre-marked Smart focus rings with electronic detection. It is powered using the included LBP-3500 Li-Ion batteries.

  • Wireless Handheld FIZ Controller
  • Multi-Axis Controller, Waterproof
  • Hot-Swap Battery, Modular Hardware
  • 2400 MHz RF-EMIP Radio Module
  • 3″ High-Contrast Touchscreen TFT LCD
  • 100 Virtual Radio Channels
  • Instant Reconnection Time
  • Vibration Alerts with Haptic Feedback
  • Integrated NATO Rail
  • Hand Strap, Neck Strap, Screen Protector
www.arrirental.com

Tilta Nucleus-M

Tilta Nucleus M | Rec Rental - Focus Remote Systems

The Tilta Nucleus-M is a revolutionary and highly customizable 3-channel wireless lens control system. It allows you to have full control of focus, iris, and zoom on either the FIZ hand unit or between the two wireless hand grips. You can even split control of the channels between the hand unit and wireless hand grips as you see fit with the push of a button.
The wireless range of both the hand unit and hand grips is 1,000 feet and with the planned upcoming transmission upgrade, the range can reach up to 1 ¼ miles! This makes the Tilta Nucleus-M ideal for drone or car-mounted shots.
The motors allow for automatic calibration of the lens as well as manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity.

www.tilta.com

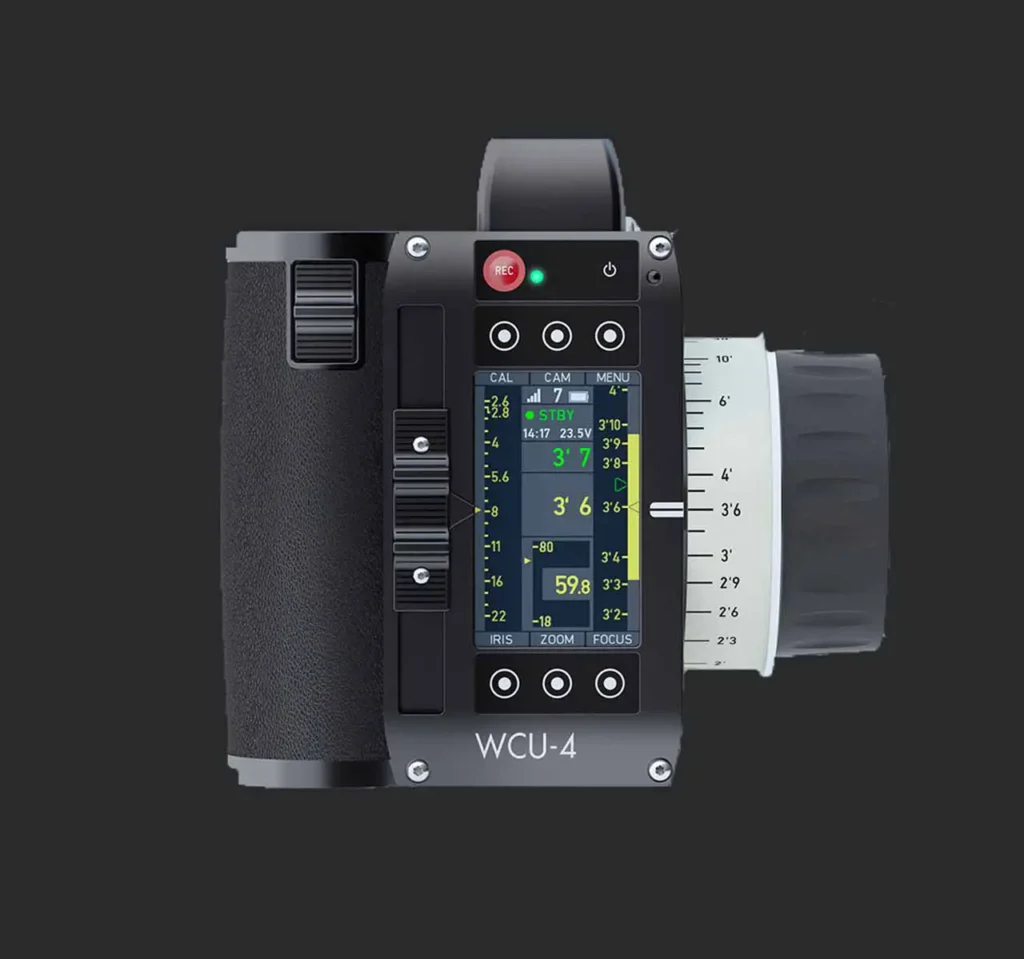

Arri WCU-4

Arri WCU-4 | Rec Rental - Focus Systems

The Wireless Compact Unit Arri WCU-4 combines three axes of lens control with a lens data display in a compact and ergonomic housing. Weighing around 780 grams including battery, it’s one of the lightest hand units in its class, providing unrivaled comfort during a long working day. An optional software license will enable you to remote control all ALEXA Plus type cameras, except the ALEXA HD Plus. Arri WCU-4 includes setting frame rate, shutter angle, exposure index, false color on the monitor output, and more. Extended camera status information is also available, allowing you to quickly check your camera settings at any time.

www.arrirental.com

Arri WCU-3

Arri WCU-3 | Rec Rental - Focus Systems

The Wireless Compact Unit Arri WCU-3 handset has the capability to control two axes, plus camera run/stop. With a built-in programmable focus knob and thumb slider, its readily available Lithium-ion batteries power the unit for up to 12 hours of continuous operation. The Arri WCU-3 is rugged and weatherproof for demanding production environments. Special attention has been given to ergonomics and durability, with features like an adjustable handgrip, backlit buttons, an illuminated index scale, optional cabled or wireless operation, and sealed precision optical encoders for the manual controls. The integrated backlit color TFT display shows the camera and lens status.
It directly communicates with the Universal Motor Controller UMC-3A, which can be attached to the ARRICAM Studio, ARRICAM Lite, ARRIFLEX 235, ARRIFLEX 435, ARRIFLEX D-21, ARRIFLEX 416 and to numerous other still and video cameras.
The CLM-3 Lens Control Motor is a very fast, powerful motor, suitable for larger primes and zooms that other motors have difficulty operating.

www.arrirental.com

Arri WFU-3

Arri WFU-3 | Rec Rental - Focus Systems

The Arri WFU-3 Wireless Focus Unit is the smallest and most flexible part of the Arri WRS system for lens and camera remote control. Through its elegant modularity the Arri WFU-3 provides great flexibility and a plethora of configuration options. Compatibility with the previous system, with the Wireless Remote Control (WRC-1) and with the ARRI Lens Data System make the WRS the most feature rich system available.

www.arri.com

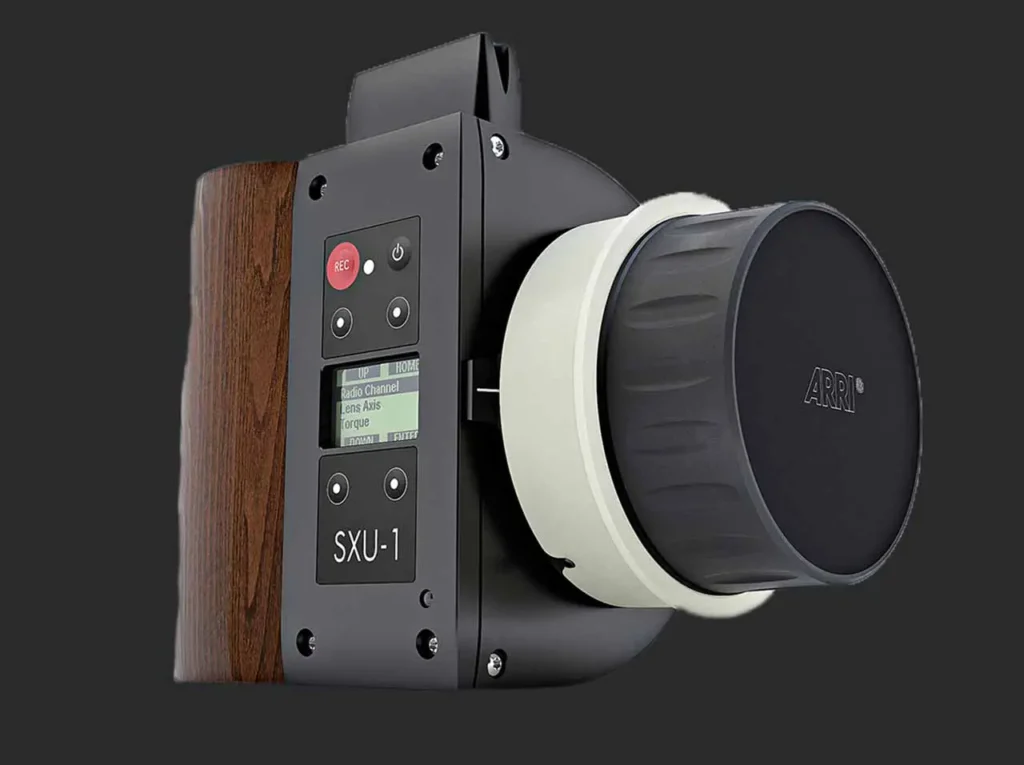

Arri Single Axis Unit SXU

Arri SXU2 | Rec Rental - Focus Systems

Arri Single Axis Unit SXU wireless hand unit for iris, focus or zoom control. Works with ALEXA Mini, ALEXA Plus, ALEXA Studio, ALEXA SXT W, ALEXA LF, ALEXA Mini LF and ALEXA 65 cameras and UMC-4, SMC-1, EMC-1 and AMC-1 motor controllers and cforce mini RF. The Arri Single Axis Unit SXU includes hand unit, lanyard, one plain marking ring (K2.72117.0) and user manual (incl. Standard wooden handgrip; optional Rigger Grip has to be ordered separately). Battery and charger need to be ordered separately: K2.47851.0 – NP-FM500H Battery (Sony) K2.0002065 – BC-QM1 Battery Charger (Sony)

www.arri.com

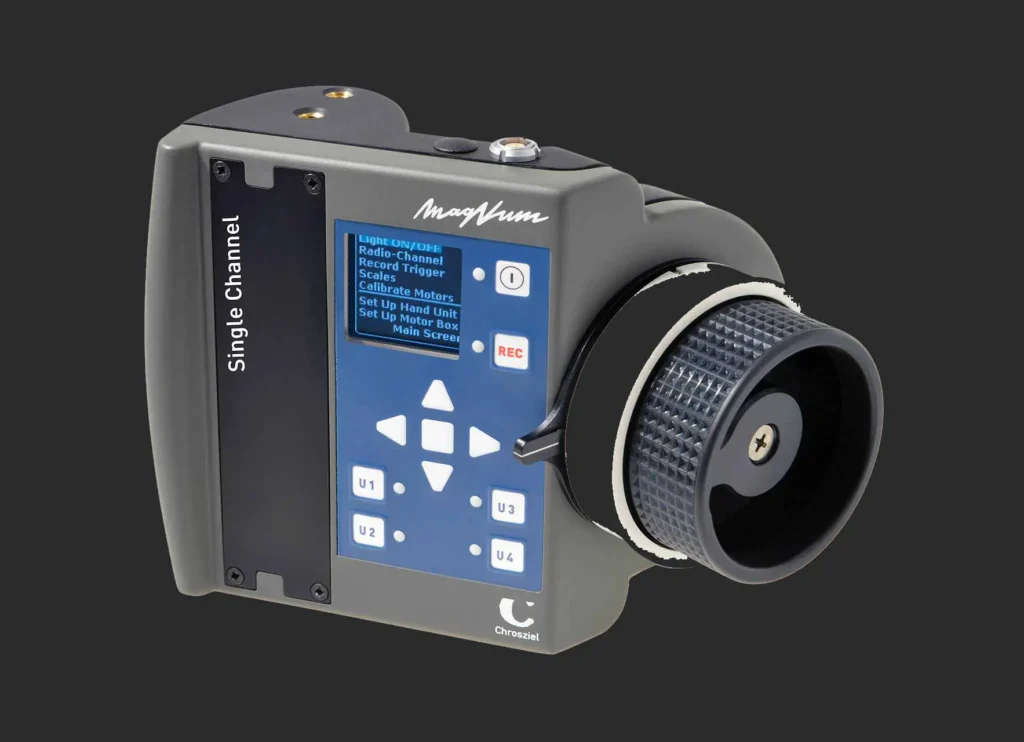

Chroszeil MagNum

Chrosziel Magnum | Rec Rental - Focus Systems

The Chroszeil MagNum wireless FIZ Lens Control System (LCS) was ergonomically and functionally optimized together with users. The Chroszeil MagNum is availabe in three versions: the basic model with one motor channel (MN-101), a two-motor channel version with a Zoom Rocker (MN-ZR) upgrade option for the hand unit (MN-150), and a fully equipped 2-motor channel version (MN-200). Extension modules expand MN-150 or MN-200 receiver with a maximum of two other motor channels, and enhanced broadcast capabilities.

www.chrosziel.com

Chroszeil Aladin MK II

Chrosziel Aladin | Rec Rental - Focus Systems

The Chroszeil Aladin MK II motor controller offers the basic equipment connections for 8 motors. This is expandable through an extension interface where additional extension modules (max. 5) can be mounted – meaning that special functions for your particular application easily can be realised. The Chroszeil Aladin MK II hand unit is characterised by a modular design. Depending on the requirements you need for your project, you can combine the various hand-held modules.
The upper end of the hand unit usually consists of the transceiver module MK II and combines the motor controller with the hand unit.
434 MHz Transmission – 18-Bit Resolution
Calculates with 32-Bit Accuracy – Eight Motor Channels in One Compact Box
Color OLED Display with Membrane Keypad – 330 Yards Outdoors and 90 Yards Inside

www.chrosziel.com
