Litegear
Category name

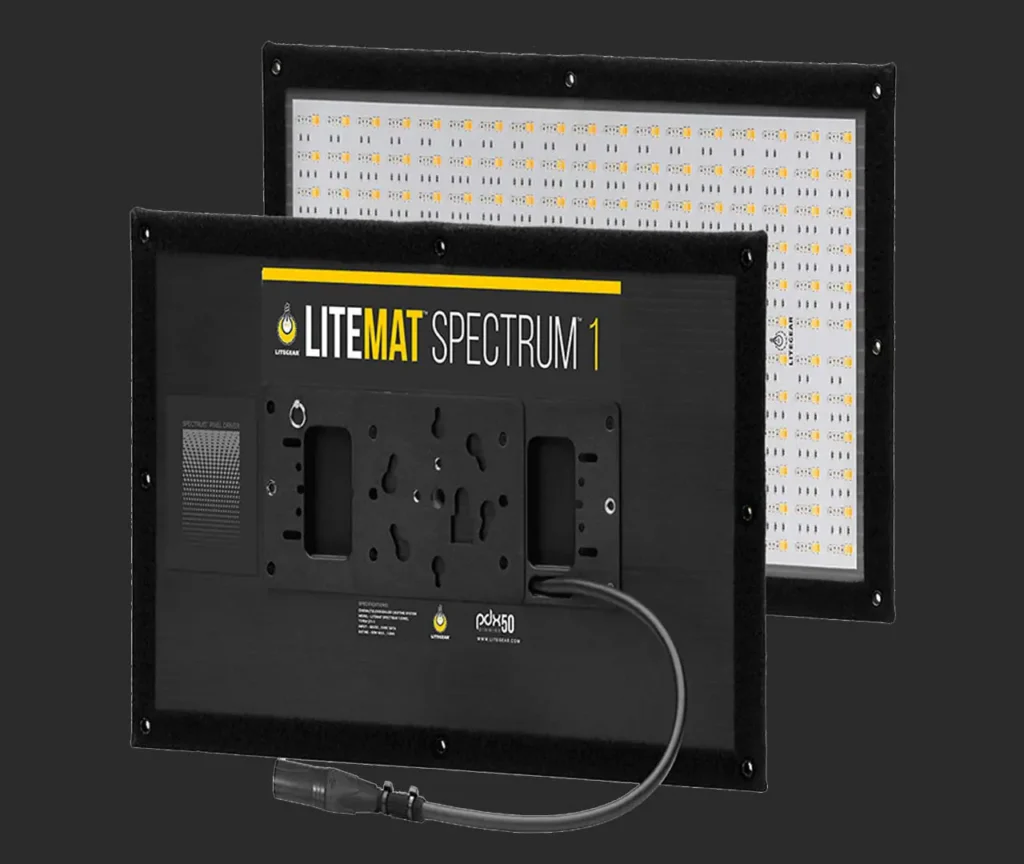

Litemat Spectrum 1

Litegear Spectrum 1 | Rec Rental - Led Lighting

The LiteMat is one of the most affordable, professional cinema lighting fixtures available today. It is is based on one “tiled” light engine which are protected by a thin, clear polycarbonate layer. The LiteMat utilizes Velcro® “loop” fasteners to attach numerous accessories. Its lightweight (2.6 lb) and thin profile (0.9 in.) make this fixture ideal for any lighting challenge you encounter.

  • Item Number: LMG-SPECTRUM-ONE-KIT
  • Power: 50W
  • Voltage Input: 48 VDC Power, 5 VDC Signal (PDX Connector)
  • Current: 1.04A
  • CCT Range: 2000K-11,000K
  • CRI: 95+
  • TLCI: 95+
  • Total LED Quantity: 1296
  • Lumens: 3476 (Tungsten), 4180 (Daylite)
  • Colored Light: Full RGB+W color gamut with Hue and Saturation Control
  • Green-Magenta Adjustment: Yes
  • Weight: 2.6 lb., (1.2 kg.) w/ Cable.
  • Dimensions
  • Height: 11.5 in. (292 mm)
  • Width: 21 in. (533 mm)
  • Depth: 0.9 in. (23 mm)
  • Operating Temperature: -10°C to +50°C (-14°F to +122°F)
  • Cable: Attached PDX Cable, 36 in. lead
  • Mount: LiteGear LiteMount
  • IP Rating: 20
  • Certifications: N/A
www.litegear.com

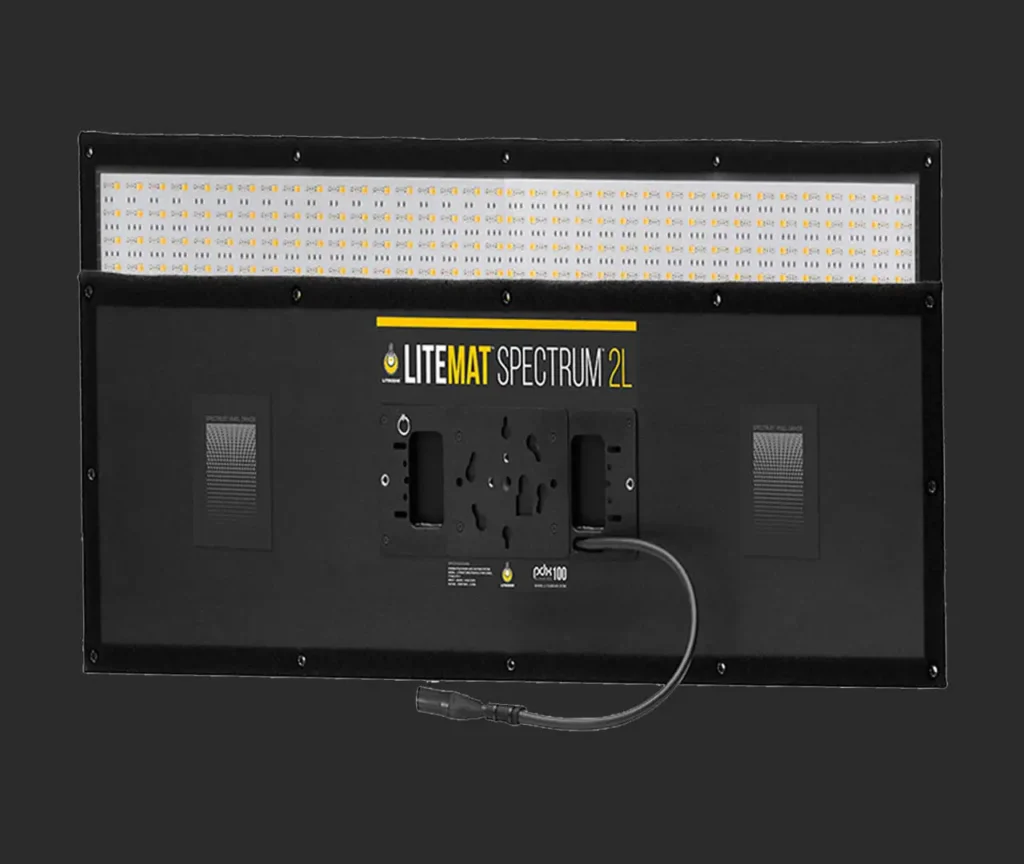

Litemat Spectrum 2L

Litegear Spectrum 2L | Rec Rental - Led Lighting

The LiteMat is one of the most affordable, professional cinema lighting fixtures available today. The LiteMat Spectrum 2L is based on two- “tiled” light engines which are protected by a thin, clear polycarbonate layer. The LiteMat utilizes Velcro® “loop” fasteners to attach numerous accessories. Its lightweight (4.6 lb) and thin profile (0.9 in.) make this fixture ideal for any lighting challenge you encounter.

  • Product Name: LiteMat Spectrum 2L
  • Item Number: LMG-SPECTRUM-TWO-L-KIT
  • Power: 100W
  • Voltage Input: 48 VDC Power, 5 VDC Signal (PDX Connector)
  • Current: 2.08A
  • CCT Range: 2000K-11,000K
  • CRI: 95+
  • TLCI: 95+
  • Total LED Quantity: 2592
  • Lumens: 6952 (Tungsten), 8360 (Daylite)
  • Colored Light: Full RGB+W color gamut with Hue and Saturation Control
  • Green-Magenta Adjustment: Yes
  • Weight: 4.6 lb., (2.1 kg.) w/ Cable.
  • Dimensions
  • Height: 11.5 in. (292 mm)
  • Width: 40 in. (1016 mm)
  • Depth: 0.9 in. (23 mm)
  • Operating Temperature: -10°C to +50°C (-14°F to +122°F)
  • Cable: Attached PDX Cable, 36 in. lead
  • Mount: LiteGear LiteMount
  • IP Rating: 20
  • Certifications: N/A
www.litegear.com

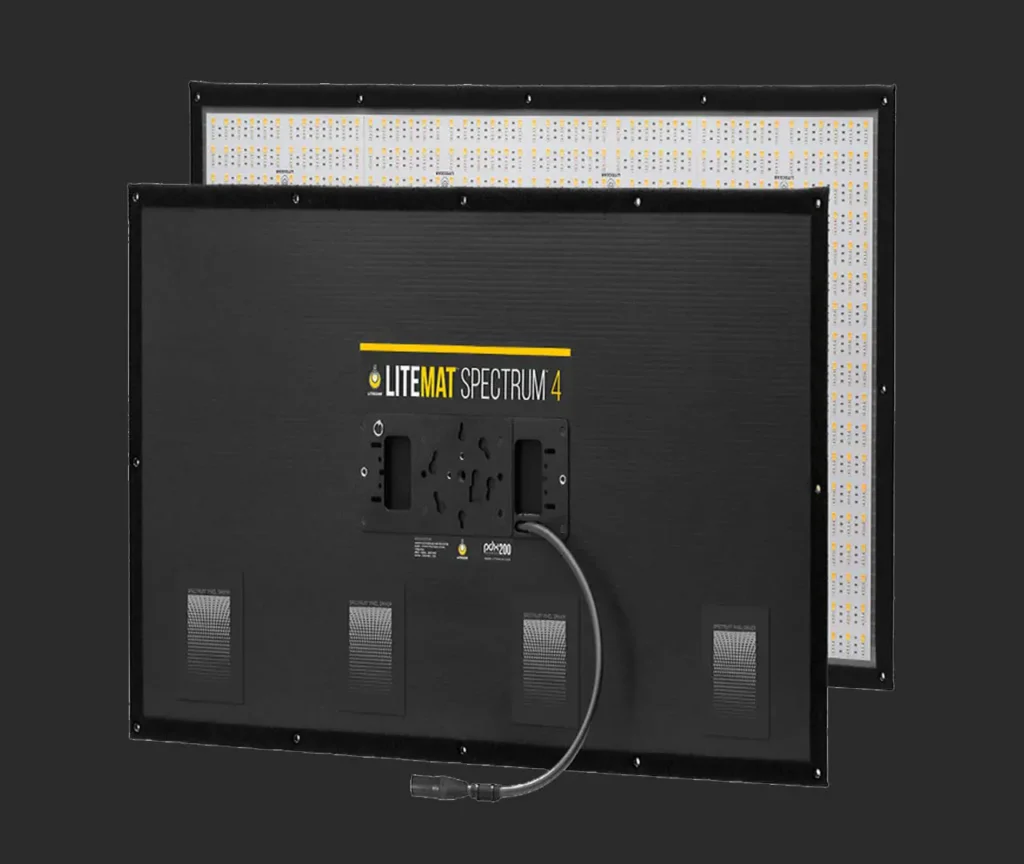

Litemat Spectrum 4

Litegear Spectrum 4 | Rec Rental - Led Lighting

The LiteMat is one of the most affordable, professional cinema lighting fixtures available today. Its based on four “tiled” light engines which are protected by a thin, clear polycarbonate layer. The LiteMat utilizes Velcro® “loop” fasteners to attach numerous accessories. Its lightweight (7.4 lb) and thin profile (0.9 in.) make this fixture ideal for any lighting challenge you encounter.

  • Product Name: LiteMat Spectrum 4
  • Item Number: LMG-SPECTRUM-FOUR-KIT
  • Power: 200W
  • Voltage Input: 48 VDC Power, 5 VDC Signal (PDX Connector)
  • Current: 2.08A
  • CCT Range: 2000K-11,000K
  • CRI: 95+
  • TLCI: 95+
  • Total LED Quantity: 5184
  • Lumens: 13904 (Tungsten), 16720 (Daylite)
  • Colored Light: Full RGB+W color gamut with Hue and Saturation Control
  • Green-Magenta Adjustment: Yes
  • Weight: 7.4 lb., (3.4 kg.) w/ Cable.
  • Dimensions: Height: 21 in. (533 mm)
  • Width: 40 in. (1016 mm)
  • Depth: 0.9 in. (23 mm)
  • Operating Temperature: -10°C to +50°C (-14°F to +122°F)
  • Cable: Attached PDX Cable, 36 in. lead
  • Mount: LiteGear LiteMount
  • IP Rating: 20
  • Certifications: N/A
www.litegear.com

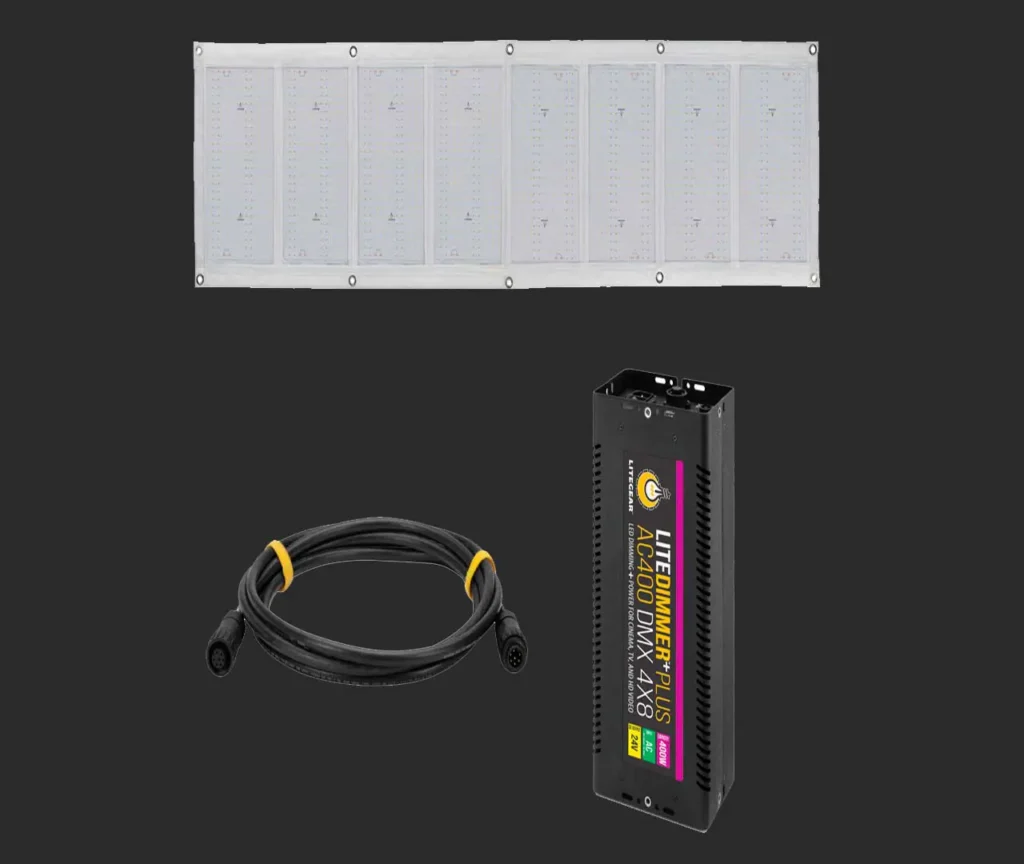

Litetile Plus 2×8

Litegear Litetitle Plus 2x8 | Rec Rental - Led Lighting

Litetile Plus 2×8 is the first foldable LED lighting fixture made completely with engineered textiles. LiteTile+ Plus 8 allows the user to install thin, soft, and adjustable Kelvin light into areas previously inaccessible. Because LiteTile+ Plus folds up to 180º between each light engine, the luminaire can be shaped into numerous configurations allowing for 360º, two-sided, or irregularly shaped setups. LiteTile+ Plus 8 can be directly attached to walls or ceiling surfaces such as office drop-ceilings with just spring-clips or tape. The LiteTile+ Plus 8 really shows its versatility when four units are coupled together and attached to a overhead/butterfly 8’ x 8’ frame. That is 1600 W and more than 18,400 cinema quality emitters creating ultra-soft Hybrid light output without the need for additional diffusion.

  • SIZE: 24 in. x 92 in. x .75 in. (610mm x 2337mm x 19mm) (LxWxH)
  • WEIGHT: 7.6 lb, 3.5g
  • VOLTAGE: 24VDC
  • CURRENT: 16.67A
  • POWER RATING: 400W
  • LED QUANTITY: 4608
  • CRI: 95+
  • CCT: 2600K-6000K
  • LUMENS: 20384
User Guides
www.litegear.com

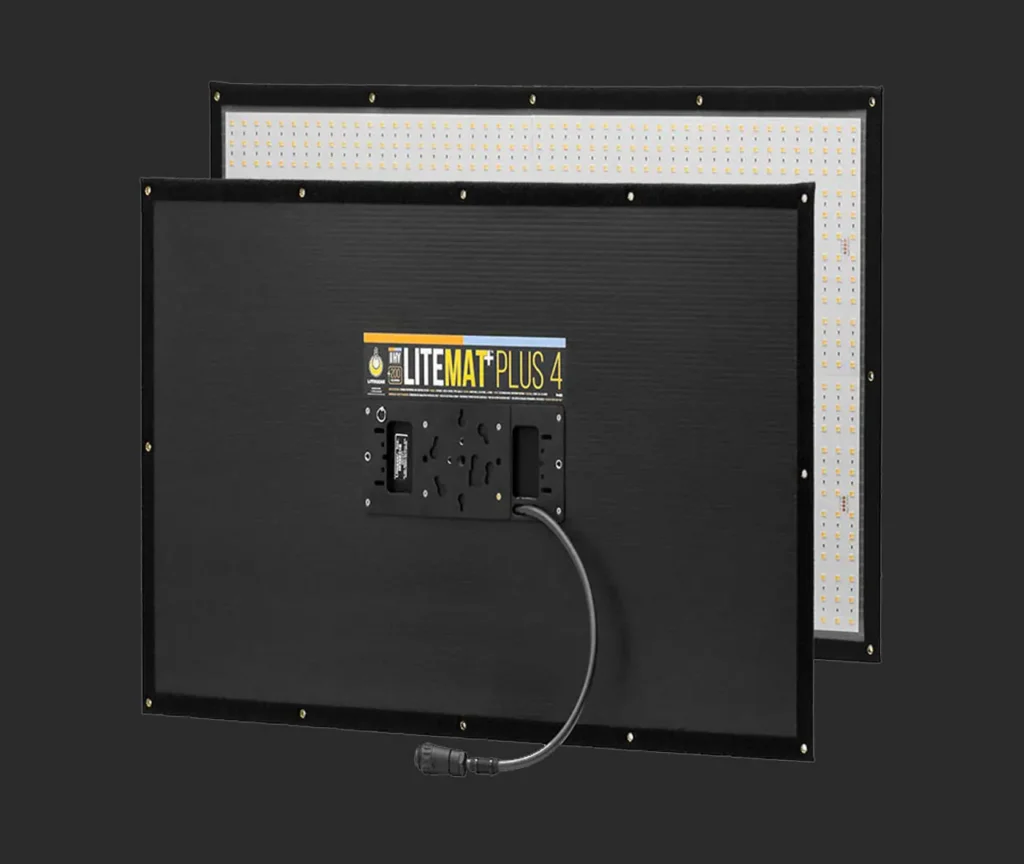

Litemat Plus 4

Litegear 4 Plus | Rec Rental - Led Lighting

The LiteMat Plus 4 is based on four “tiled” light engines which are protected by a thin, clear polycarbonate layer. The LiteMat utilizes Velcro® “loop” fasteners to attach numerous accessories. Its lightweight (6.2 lb) and thin profile (0.9 in.) make this fixture ideal for any lighting challenge you encounter. The head unit features 1152 new CineMitter LEDs and is covered by a thin, clear polycarbonate layer and bordered entirely with Velcro® “loop” fastener.

  • SIZE: 21 in. x 40 in. x .9 in. (533mm x 1016mm x 23mm) (LxWxH)
  • WEIGHT: 6.2 oz, 2.81g
  • VOLTAGE: 24VDC
  • CURRENT: 8.33A
  • POWER RATING: 200W
  • LED QUANTITY: 2304
  • CRI: 95+
  • CCT: 2600K-6000K
  • LUMENS: 10192
User Guides
www.litegear.com

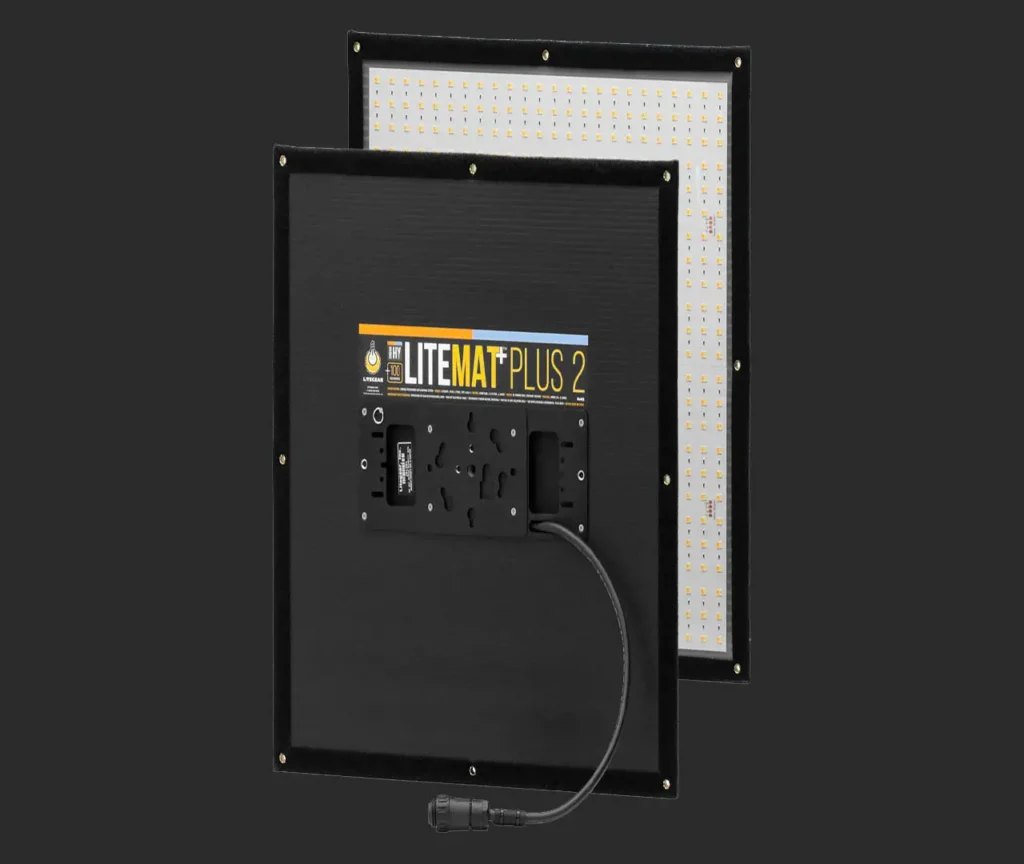

Litemat Plus 2

Litegear 2 Plus | Rec Rental - Led Lighting

The LiteMat Plus 2 is based on two “tiled” light engines which are protected by a thin, clear polycarbonate layer. It utilizes Velcro® “loop” fasteners to attach numerous accessories. Its lightweight (3.8 lb) and thin profile (0.9 in.) make this fixture ideal for any lighting challenge you encounter. It’s square size allows for traditional setups. The head unit features 1152 new CineMitter LEDs and is covered by a thin, clear polycarbonate layer and bordered entirely with Velcro® “loop” fastener.

  • SIZE: 21 in. x 21 in. x .9 in. (533mm x 533mm x 23mm) (LxWxH)
  • WEIGHT: 3.8 oz, 1.72g
  • VOLTAGE: 24VDC
  • CURRENT: 4.17A
  • POWER RATING: 100W
  • LED QUANTITY: 1152
  • CRI: 95+
  • CCT: 2600K-6000K
  • LUMENS: 5096
User Guides
www.litegear.com
