Step up in scale with the Vortex24 and its counterpart, the Vortex24 Soft – a powerhouse duo in the Vortex family. Built on the same RRGBBW colour engine, they deliver efficiency and consistency crews can count on, each IP65-rated and ready to run on standard house power.

The Vortex24 Hard is the heavy hitter for directional punch, with the flexibility to soften through diffusion when needed – versatility in its purest form.

Switch to the Vortex24 Soft and you get softness at scale – a massive native soft source, spreading double the output of the Hard across a 110° beam. It’s smooth, bright, beautifully even, and carries the same rugged build and five-year warranty that define the Vortex line.

The Creamsource Colour Management System (CCMS) unifies Vortex and Micro fixtures with a unique LED mix, meticulous factory calibration, and sophisticated software algorithms done in native CIE xy colour space. This advanced system ensures consistent, high-quality light output across devices, maintains colour accuracy at all dimming levels, and compensates for temperature changes.

The RRGBBW (red+deep red, green, blue+royal blue, white) LED configuration enriches red saturation, enhances warm whites, allows for deeper and brighter blues, and improves the quality of cool whites – outperforming traditional RGBW setups.

All-in-One Control. With CreamOS V3.1’s multilingual web interface, you can find, configure, and manage all your Vortex fixtures from any browser. Make quick adjustments and troubleshoot without breaking a sweat.

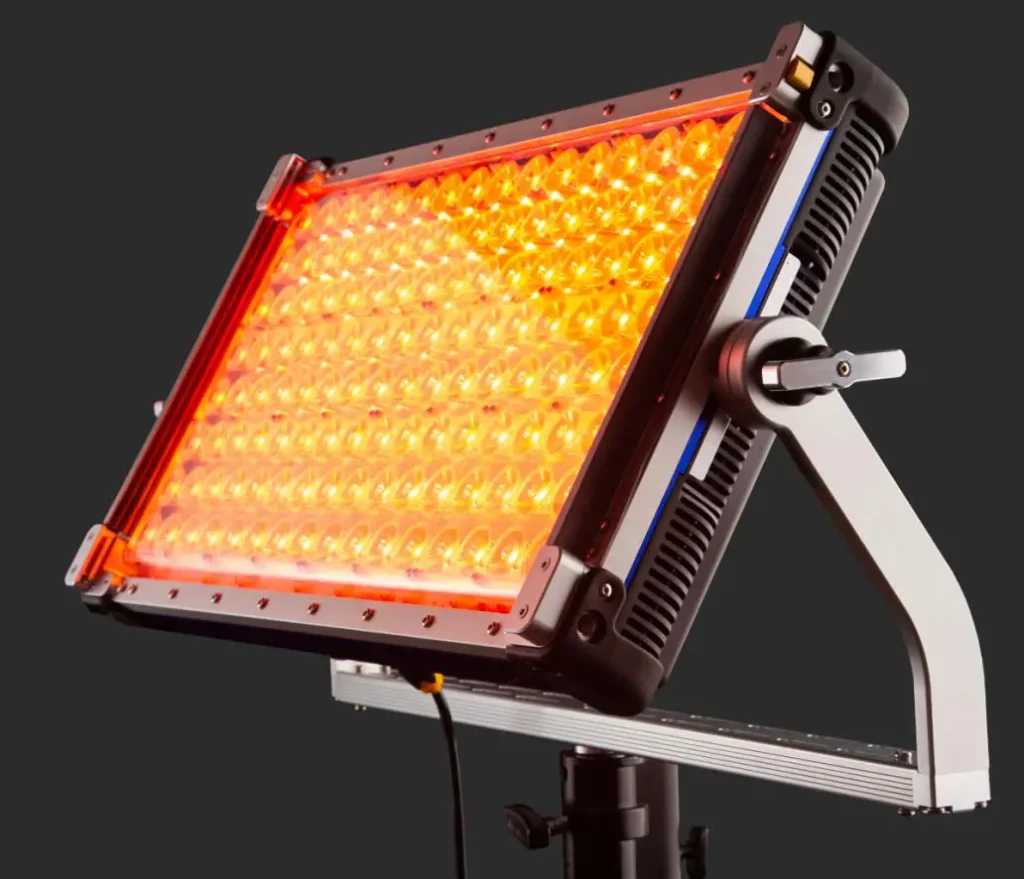

The Vortex8 is a versatile 2×1 RGBW system with CCT ranging from 2200K to 15000K that can be used as a hard punch light to bounce or push through diffusion, or as a creamy soft light with the Creamsource Dome or DoPchoice Snapbag. Effects and colour Gels are built into the latest CreamOS architecture in addition to a range of new features wrapped into an intuitive user interface.
Unpredictable weather and messy effects machines are no longer a worry for the lighting department where the Vortex is in place. The Vortex8 is IP65 water resistant and sealed for the ultimate security and efficiency. Rain, snow and dust wont hold the Vortex back.
The new Vortex8 has been built with new software architecture at its base, supporting a myriad of new features, protocols and connectivity mediums making the future evolution of CreamOS very exciting. The new feature set has been wrapped into a new user interface, enhancing the user experience.<-p>

• Head Weight: 15.9kg / 35lb (Excluding Yoke)- 1.72kg / 3.8lb (Yoke weight)
• Dimensions: 380 x 380 x 121mm / 15” x 15” x 4.8” (Excluding Yoke) – 831x551x164mm/32.7”x21.7”x6.4” (Including Yoke)
• Protection Class: IP65
• Beam Angle Naked: 20°
• Maximum Ambient Temperature: 40°C
• Features: A premium high powered 2×1 LED fixture designed for heavy use in all conditions.
  IP65 Water resistant with a built in power supply and all the advanced connectivity for professional use.
  Optimised for a range of applications with RGBW, a wide CCT range and high speed modes for shooting up to 5000fps.
  Sync Input for Triggering and Syncing to Camera Shutter.
• Output: 650W of LED power providing the equivalent output to a HMI 1.2Kw Fresnel.
  A native 20° beam angle for extreme punch and intensity. This can be diffused with the Creamsource Dome.
  With the high power output an active cooling system is in place with nearly silent fans and effective heat dissipation through the machined chassis.

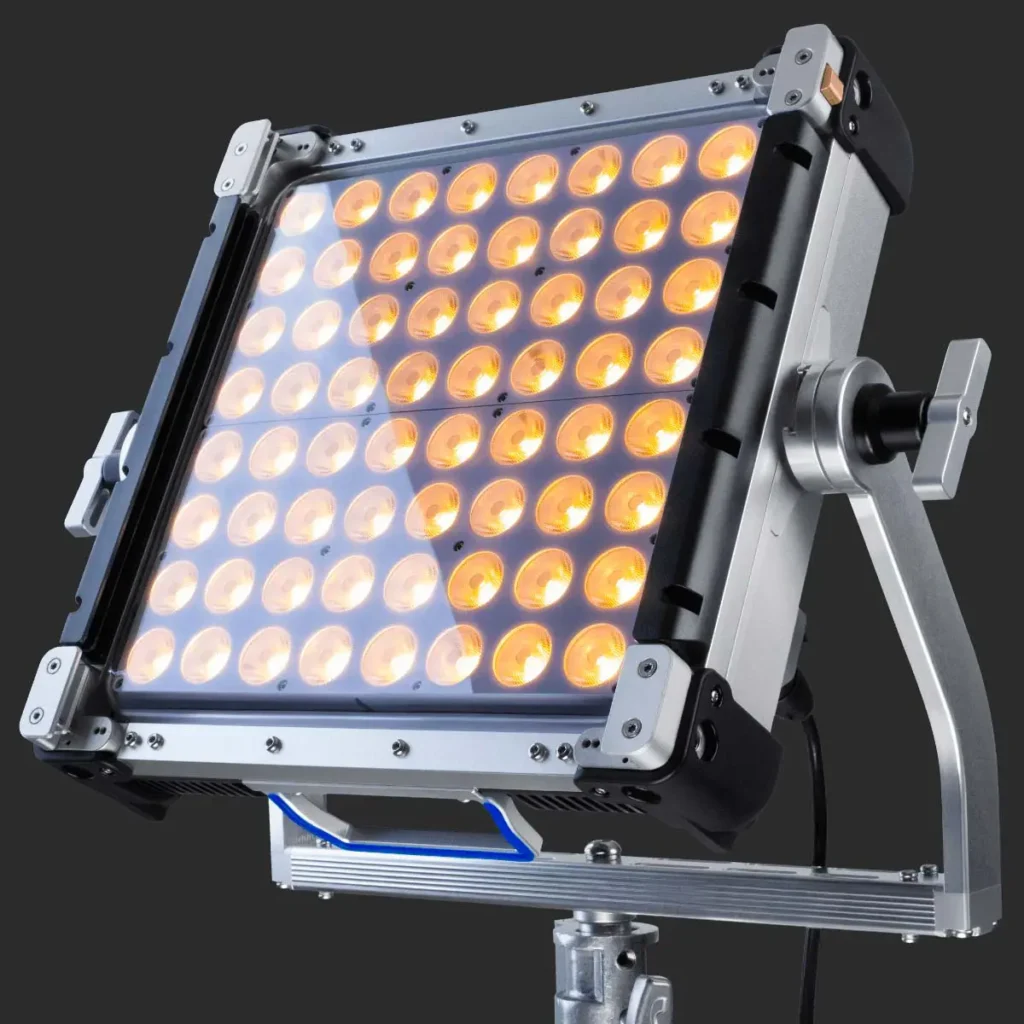

The Vortex4 is a 1×1 RGBW All-In-One system with PSU and antennas integrated, reading 7300lux @3m on the meter. This fixture has a CCT range from 2200K to 15000K. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.

Effects and colour gels and our latest technology ‘FrameSync’ are built into the latest CreamOS architecture. Like it’s big brother, Vortex4 has no problem with weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.
Combining years of expertise, the Vortex Series have been redesigned with new software architecture, supporting industry standard features, protocols and connectivity mediums making the future evolution of CreamOS very exciting. The new feature set has been wrapped into a new user interface, enhancing the user experience.<-p>

• Head Weight: 9.9kg / 21.8lb (Excluding Yoke)- 1.72kg / 3.8lb (Yoke weight)
• Dimensions: 380 x 380 x 121mm / 15” x 15” x 4.8” (Excluding Yoke) – 525 x 570 x 179.25mm / 20.7” x 22.4” x 7.1” (Including Yoke)
• Protection Class: IP65
• Beam Angle Naked: 20°
• Maximum Ambient Temperature: 40°C
• Features: A premium high powered 1×1 LED fixture designed for heavy use in all conditions.
  IP65 Water resistant with a built in power supply and all the advanced connectivity for professional use.
  Optimised for a range of applications with RGBW, a wide CCT range and high speed modes for shooting up to 5000fps.
  Sync Input for Triggering and Syncing to Camera Shutter.
• Output: 325W of LED power providing the equivalent output to a HMI 575W Fresnel.
  A native 20° beam angle for extreme punch and intensity. This can be diffused with the Creamsource Dome.
  With the high power output an active cooling system is in place with nearly silent fans and effective heat dissipation through the machined chassis.

The LNX Vortex Rigging System is a first-of-its-kind rigging system that takes the guesswork out of creating arrays of Creamsource Vortex fixtures. The system is comprised of LNX Pins, which slot into the Vortex fixtures, and LNX 4-Way mounts, which accept the pins and serve as the building blocks of the array. The mounts then attach to industry standard pipe, such as Speed-Rail®, ensuring that the LNX system is a seamless addition to existing grip gear. The arrays can be as small as two units and as large as you can fit on a soundstage or construction crane. The LNX system leverages unique stainless steel mounting features integrated into each corner of the Vortex to be able to “link” one unit to the next, only requiring the yoke to first be removed. The arrays that are created using LNX are nearly gapless, with only about 7/8 in. (22.23 mm) separating adjacent fixtures, meaning that considerably more light can be packed into a given area. The quality of the light output is also more uniform, as the LNX system ensures uniformity of the spacing of the array.

Quickly assemble uniform/aligned arrays of Vortex fixtures with minimal gap between units. LNX is the quick solution for creating large rigs. No alignment time, no measurement time, with tidy cable runs. LNX arrays will withstand heavy use – transport and relocation, high levels of vibration and high wind loading. Built for heavy use, indoor or extreme outdoors. The LNX system leverages multiple mount points, making it more robust and reliable than traditional single point fixture rigging. Multiple latches and auto-locking features ensure safety of operators and anyone under the rig at all times. Build as small as two units or large arrays- limited only by your ability to lift the rig.

Use the LNX Vortex Rigging System Calculator to design arrays: go to https://knowledge.creamsource.com/lnx-calculator
